TP-Link T2600G Series User Manual

Configuration Example
User Guide
1069

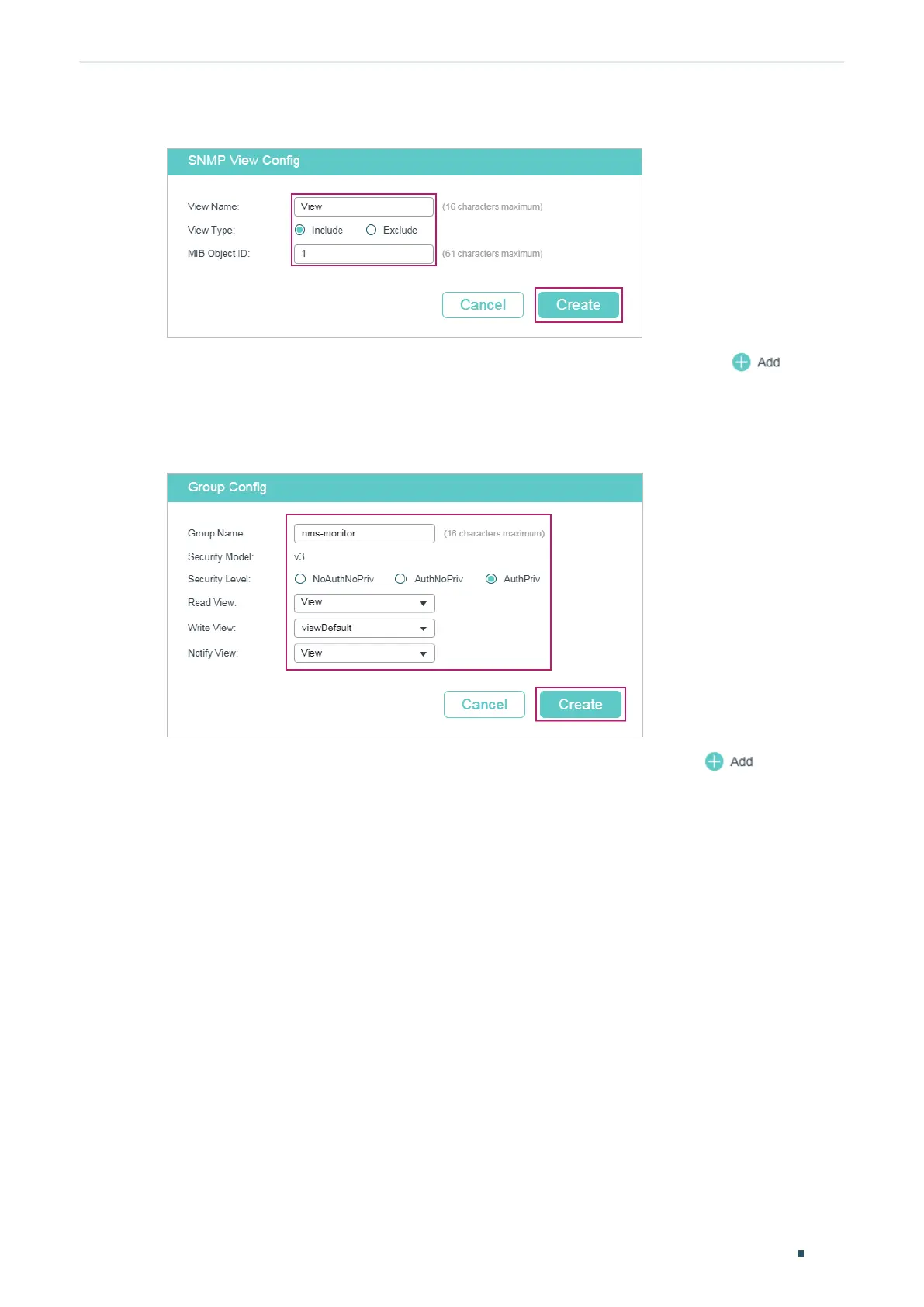

Figure 6-3 Creating an SNMP View
3) Choose MAINTENANCE > SNMP > SNMP v3 > SNMP Group and click to load
the following page. Create a group named nms-monitor, enable authentication and
privacy, and add View to Read View and Notify View. Click Create.
Figure 6-4 Configuring an SNMP Group
4) Choose MAINTENANCE > SNMP > SNMP v3 > SNMP User and click to load the
following page. Create a user named admin for the NMS, set the user type as Remote
User and specify the group name. Set the Security Level in accordance with that of the
group nms-monitor. Choose SHA authentication algorithm and DES privacy algorithm,
and set corresponding passwords. Click Create.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
