User Guide 250
Configuring VLAN-VPN Configuration Examples

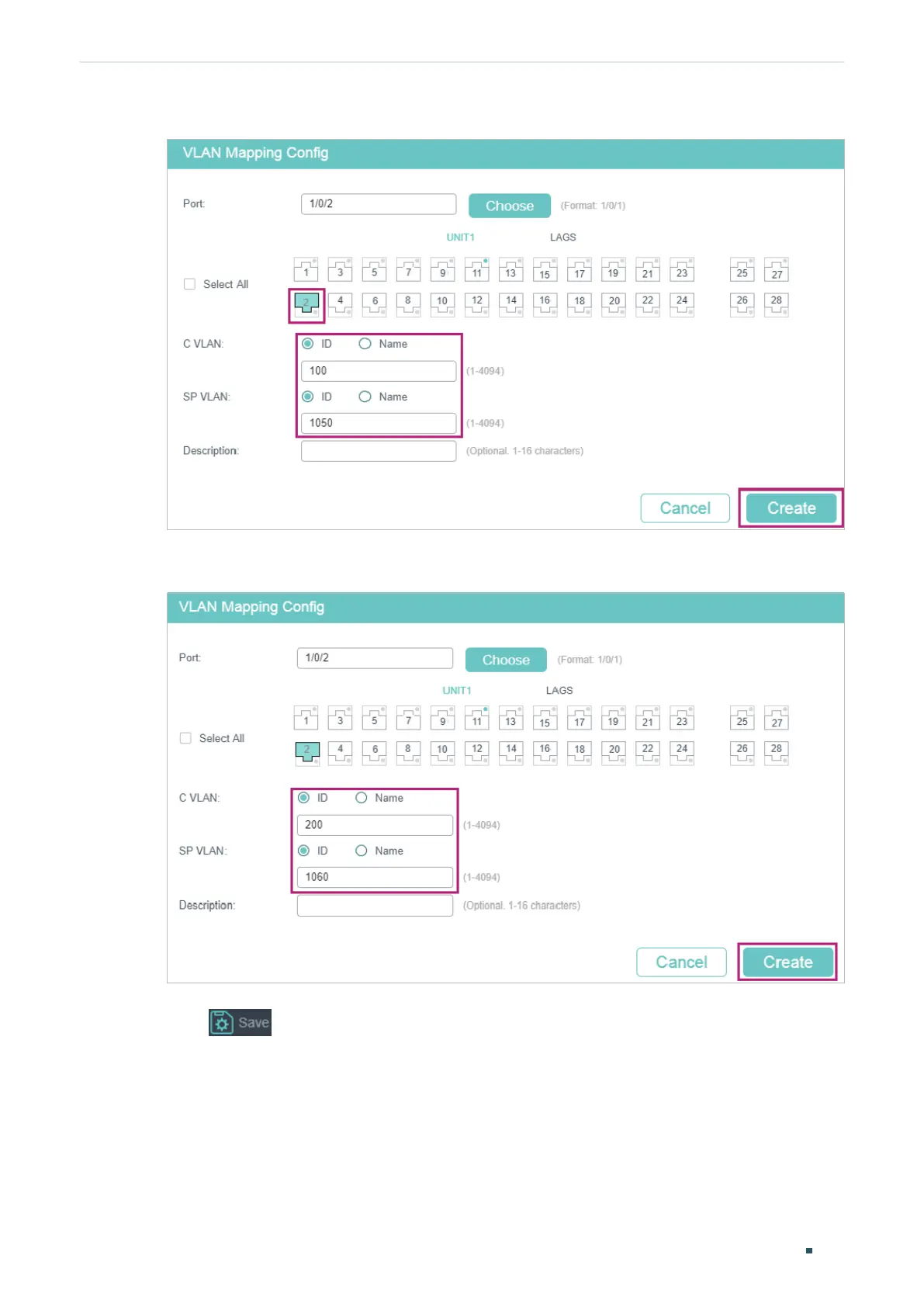

Figure 4-16 Mapping VLAN 100 to VLAN 1050
Figure 4-17 Mapping VLAN 200 to VLAN 1060
4) Click to save the settings.
■ Configuring Switch 3:
1) Go to L2 FEATURES > VLAN > 802.1Q VLAN to create VLAN 100 and VLAN 200.
Configure the egress rules of port 1/0/1 in VLAN 100 as Untagged; egress rules of port
1/0/2 in VLAN 200 as Untagged; egress rule of port 1/0/3 in VLAN 100 and VLAN 200 as
Tagged.
