Configuring Layer 2 Multicast Configuration Examples

User Guide

373

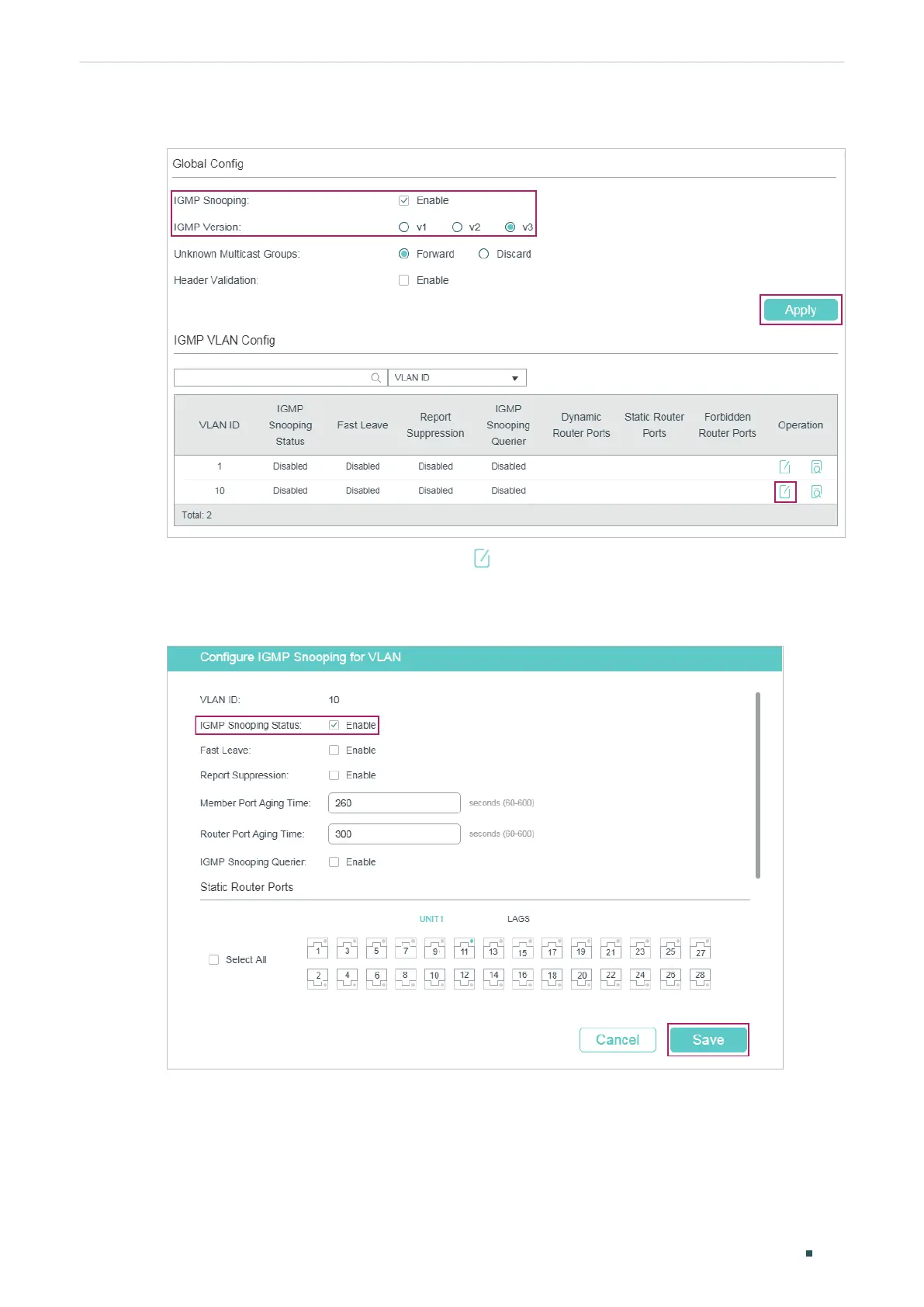

Figure 7-19 Enable IGMP Snooping Globally

3) In the IGMP VLAN Config section, click in VLAN 10 to load the following page. Enable

IGMP Snooping for VLAN 10.

Figure 7-20 Enable IGMP Snooping for VLAN 10
