TP-Link T2600G Series User Manual

User Guide 374
Configuring Layer 2 Multicast Configuration Examples
4) Choose the menu L2 FEATURES > Multicast > IGMP Snooping > Port Config to load
the following page.

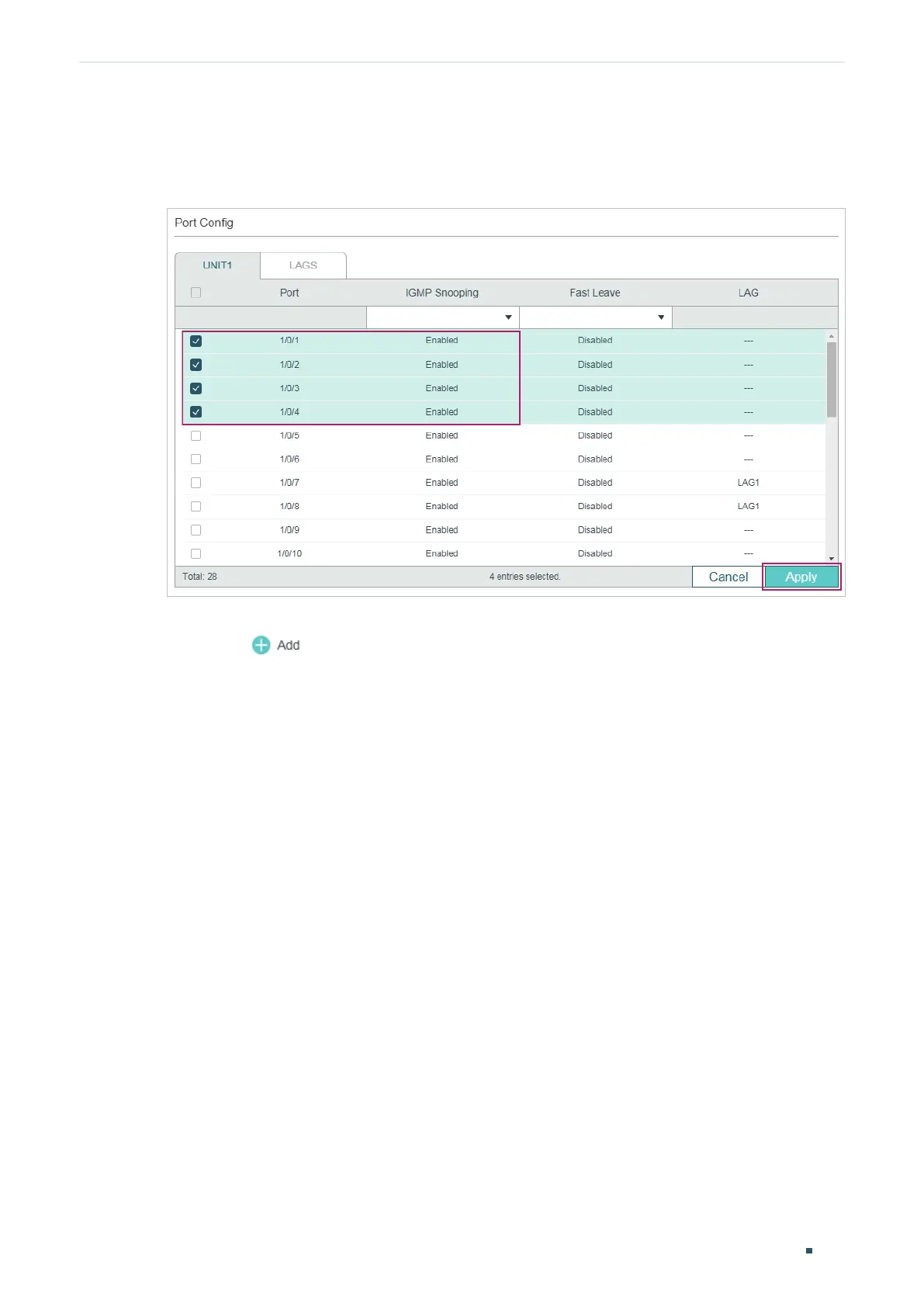

Figure 7-21 Enable IGMP Snooping on the Port
5) Choose the menu L2 FEATURES > Multicast > Multicast Filtering > IPv4 Profile
and click
to load the following page. Create Profile 1, specify the mode as
Permit, bind the profile to port 1/0/2-3, and specify the filtering multicast IP address as
225.0.0.1. Then click Back to return to the IPv4 Profile Table page.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
