TP-Link T2600G Series - Page 404

Configuring Layer 2 Multicast Configuration Examples
User Guide
375

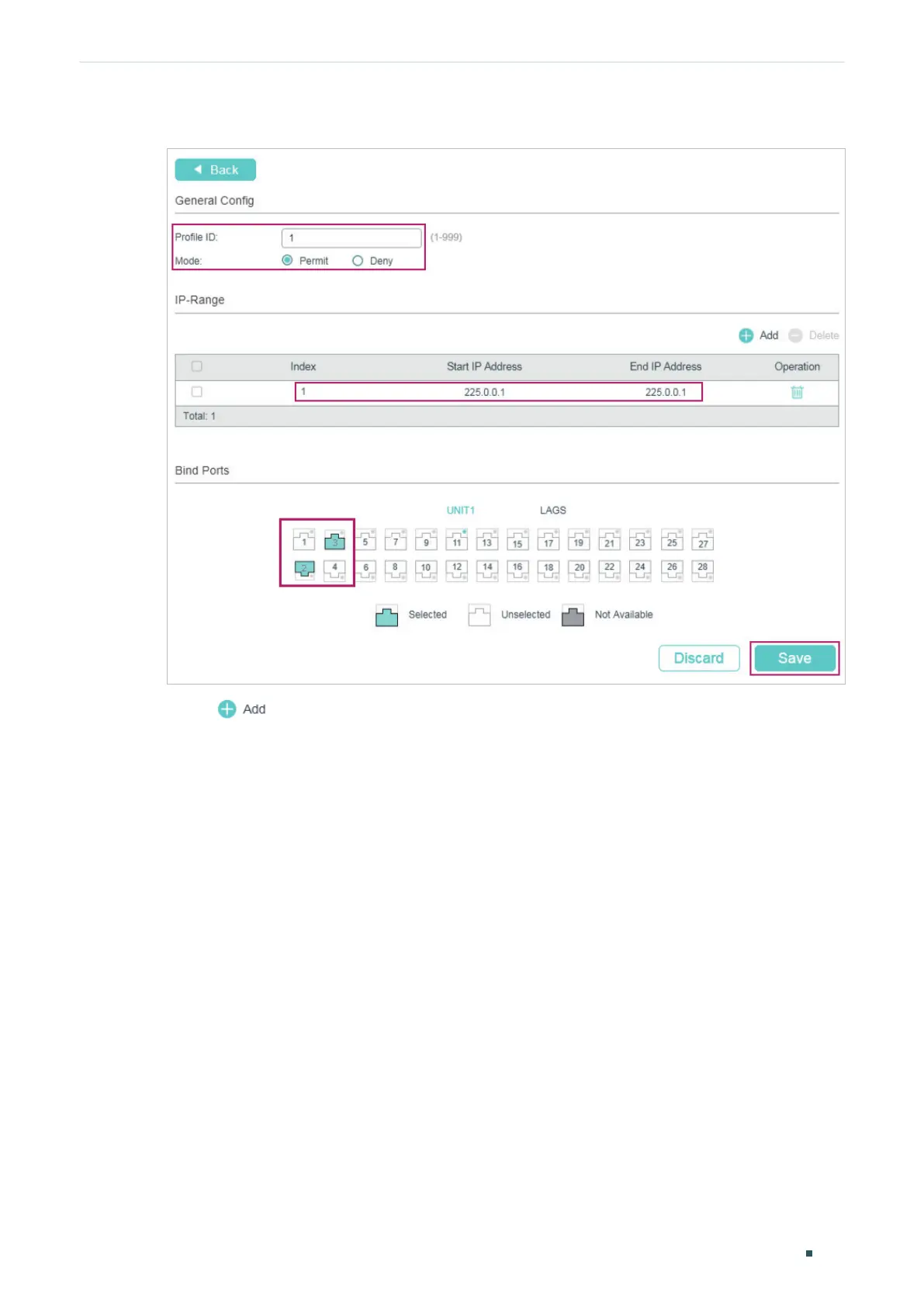

Figure 7-22 Configure Filtering Profile for Host C and Host D
6) Click again to load the following page. Create Profile 2, specify the mode as
Deny, bind the profile to port 1/0/1, and specify the filtering multicast IP address as
225.0.0.2.
