TP-Link T2600G Series User Manual

User Guide 578
Configuring DHCP Service Configuration Examples
■ Configuring the VLAN Interface and Routed Port on the Relay Agent

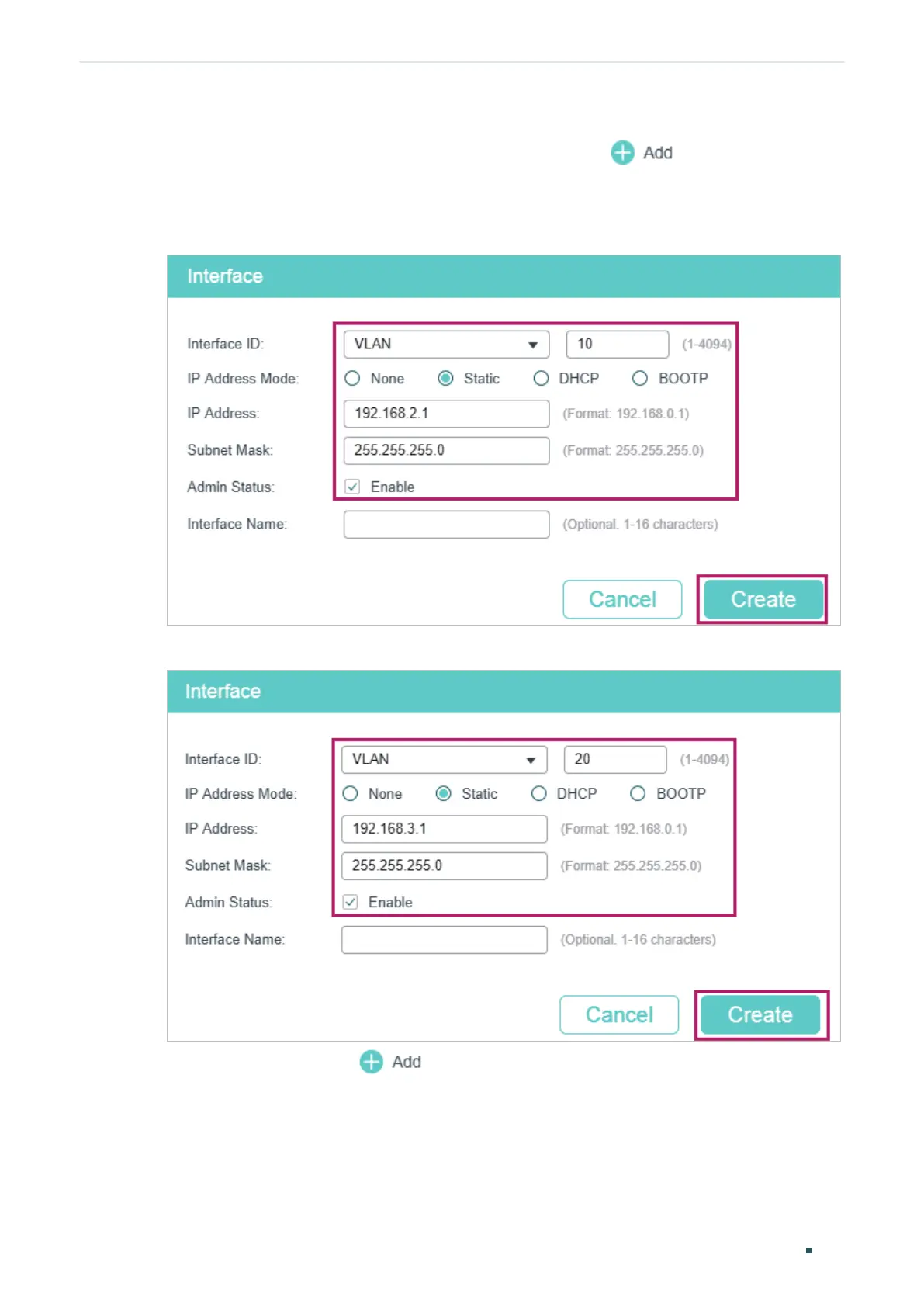

1) Choose the menu L3 FEATURES > Interface and click
to load the following
page. Create VLAN interface 10 and VLAN interface 20. Configure port 1/0/5 as the
routed port.
Figure 5-13 Creating VLAN Interface 10
Figure 5-14 Creating VLAN Interface 20
2) On the same page, click again to configure port 1/0/5 as the routed port.

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
