TP-Link T2600G Series User Manual

Configuring DHCP Service Configuration Examples
User Guide
579

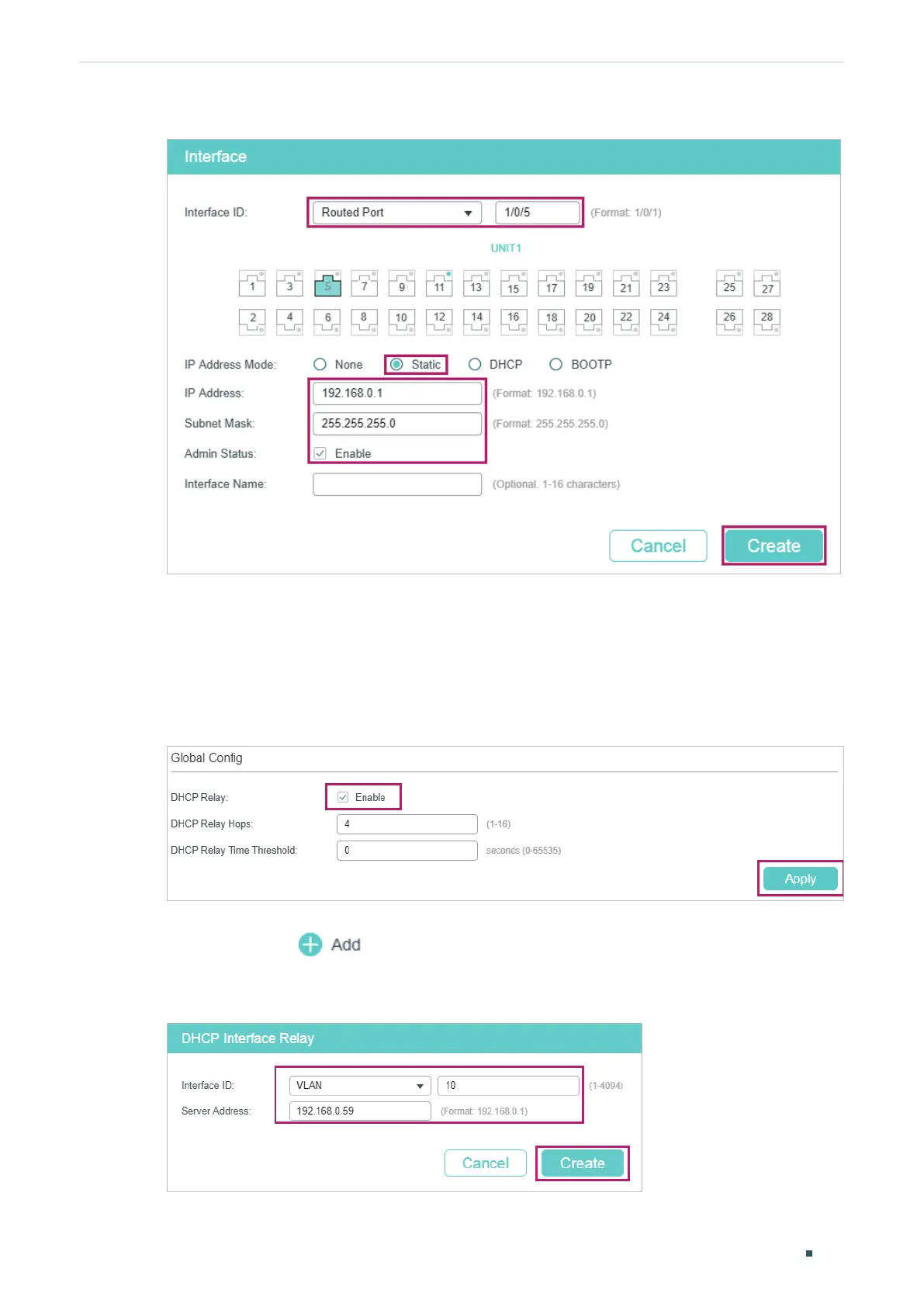

Figure 5-15 Configuring the Routed Port
■ Configuring DHCP Interface Relay on the Relay Agent
1) Choose the menu L3 FEATURES > DHCP Service > DHCP Relay > DHCP Relay Config
to load the following page. In the Global Config section, enable DHCP Relay, and click
Apply.
Figure 5-16 Enable DHCP Relay
2) Choose the menu L3 FEATURES > DHCP Service > DHCP Relay > DHCP Interface
Relay and click
to load the following page. Specify the DHCP server for the
clients in VLAN 10 and VLAN 20.
Figure 5-17 Specify DHCP Server for Interface VLAN 10

TP-Link T2600G Series Specifications

General

Model	T2600G Series
Layer	Layer 2+
Type	Managed
Uplink Ports	4 x Gigabit SFP slots
VLAN	4K VLANs
QoS	8 priority queues
Management	Web-based GUI, CLI, SNMP, RMON
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface	RJ45
L2 Features	STP, RSTP, MSTP, LACP, IGMP Snooping
L3 Features	Static Routing
Security	802.1X, Port Security, DHCP Snooping, IP Source Guard, DoS Defend, ARP Inspection, SSH, SSL, ACL
MAC Address Table	16K
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% non-condensing
