Configuring ACL Configuration Example for ACL

User Guide

821

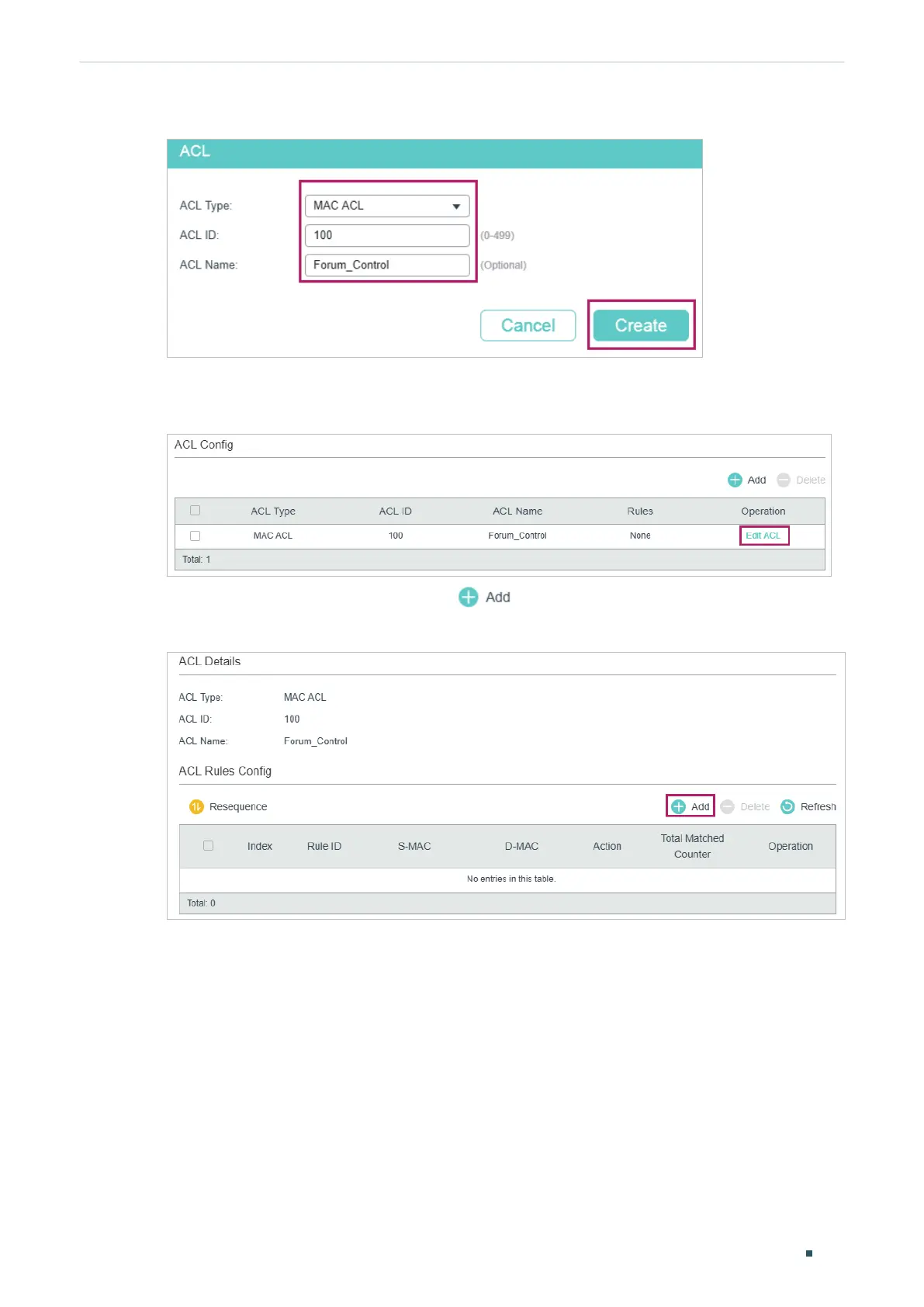

Figure 3-5 Creating a MAC ACL

5) Click Edit ACL in the Operation column.

Figure 3-6 Editing the MAC ACL

6) On the ACL configuration page, click .

Figure 3-7 Editing the MAC ACL

7) Configure rule 5 to permit packets with the source MAC address 8C-DC-D4-40-A1-79

and destination MAC address 40-61-86-FC-71-56.
