User Guide 822

Configuring ACL Configuration Example for ACL

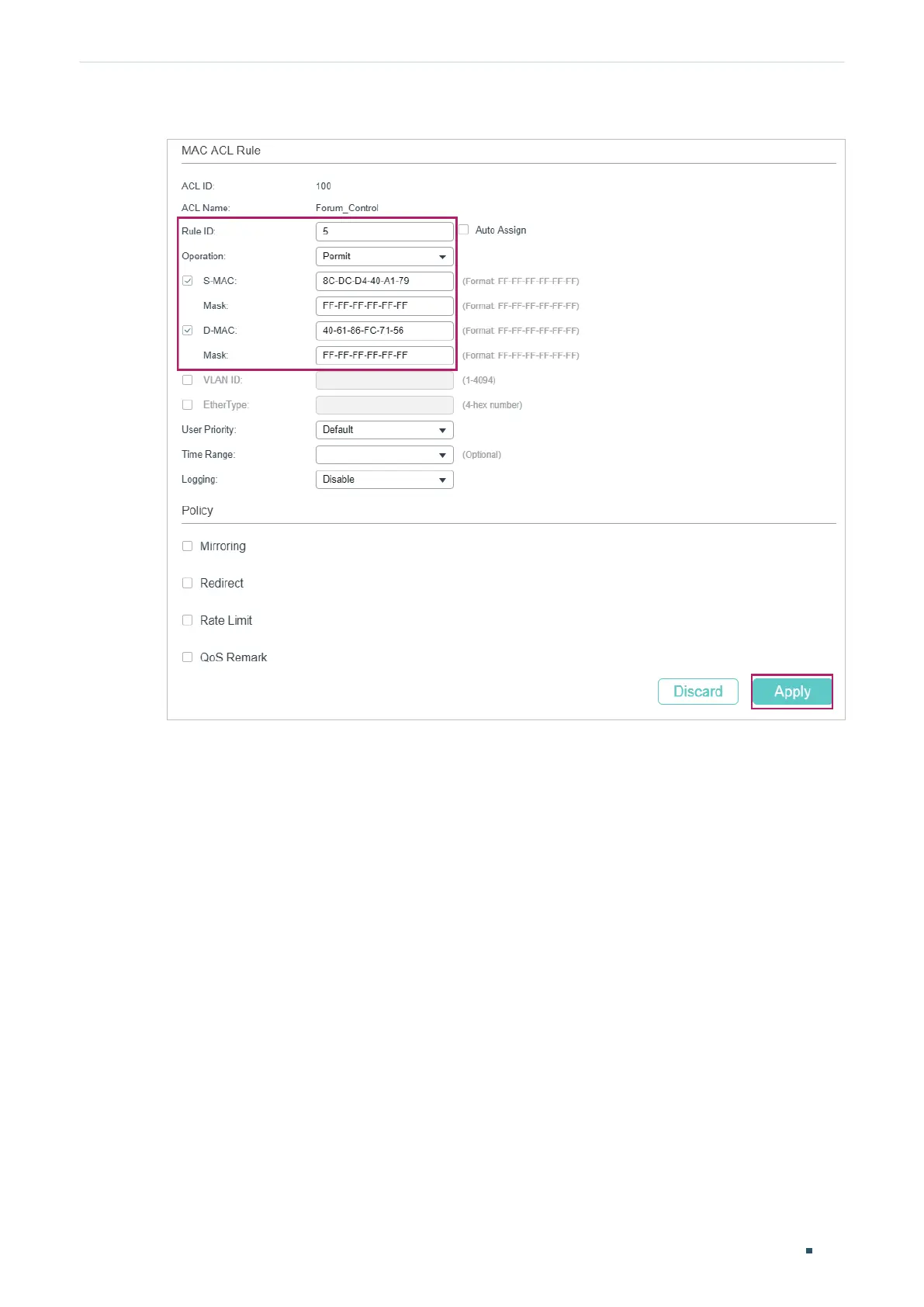

Figure 3-8 Configuring Rule 5

8) In the same way, configure rule 15 to deny packets with destination MAC address 40-

61-86-FC-71-56 and apply the time range of work hours.
