User Guide 828

Configuring ACL Configuration Example for ACL

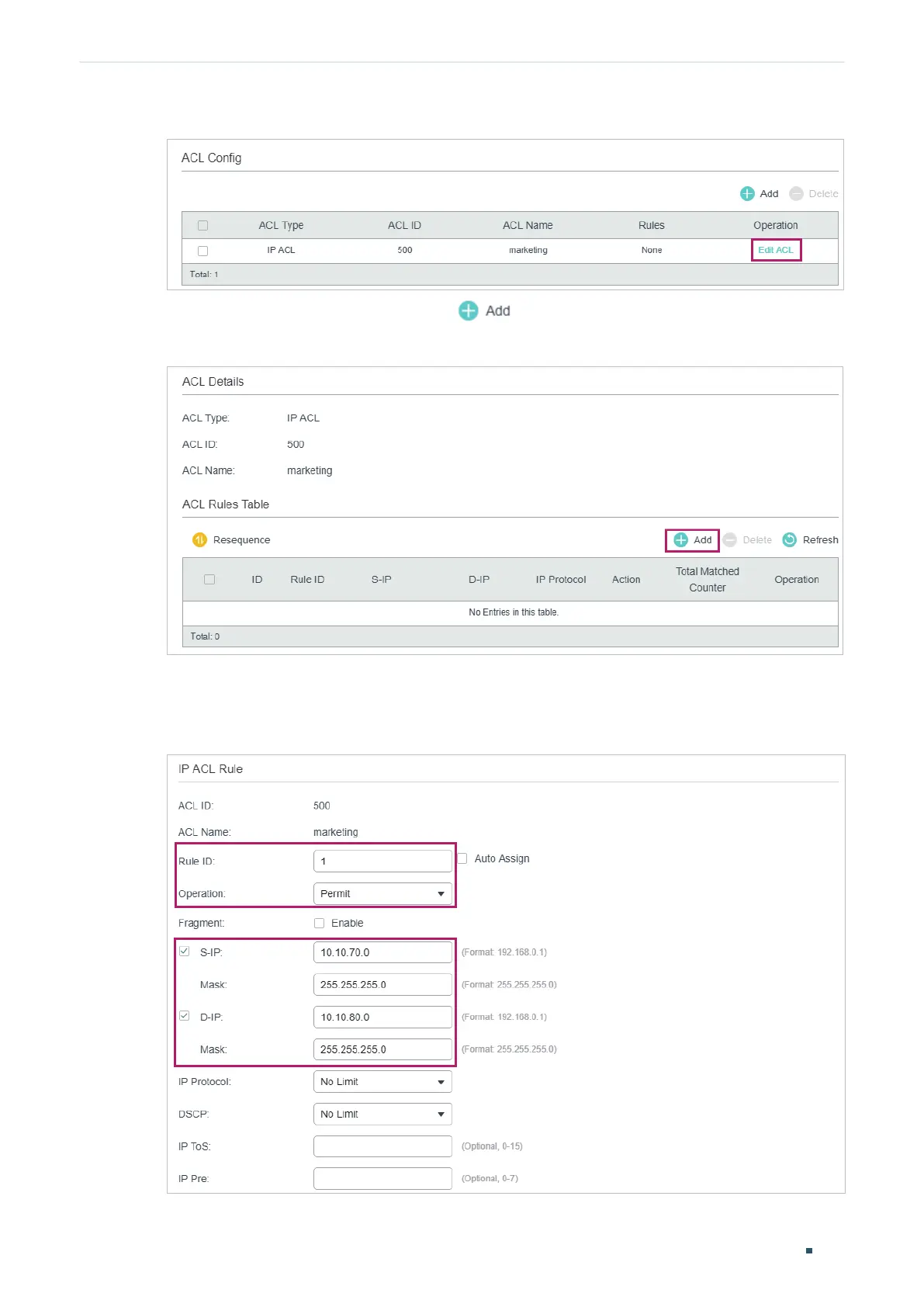

Figure 3-14 Editing IP ACL

3) On the ACL configuration page, click .

Figure 3-15 Editing IP AC

4) Configure rule 1 to permit packets with the source IP address 10.10.70.0/24 and

destination IP address 10.10.80.0/24.

Figure 3-16 Configuring Rule 1
