Configuring ACL Configuration Example for ACL

User Guide

829

5) In the same way, configure rule 2 and rule 3 to permit packets with source IP 10.10.70.0

and destination port TCP 80 (http service port) and TCP 443 (https service port).

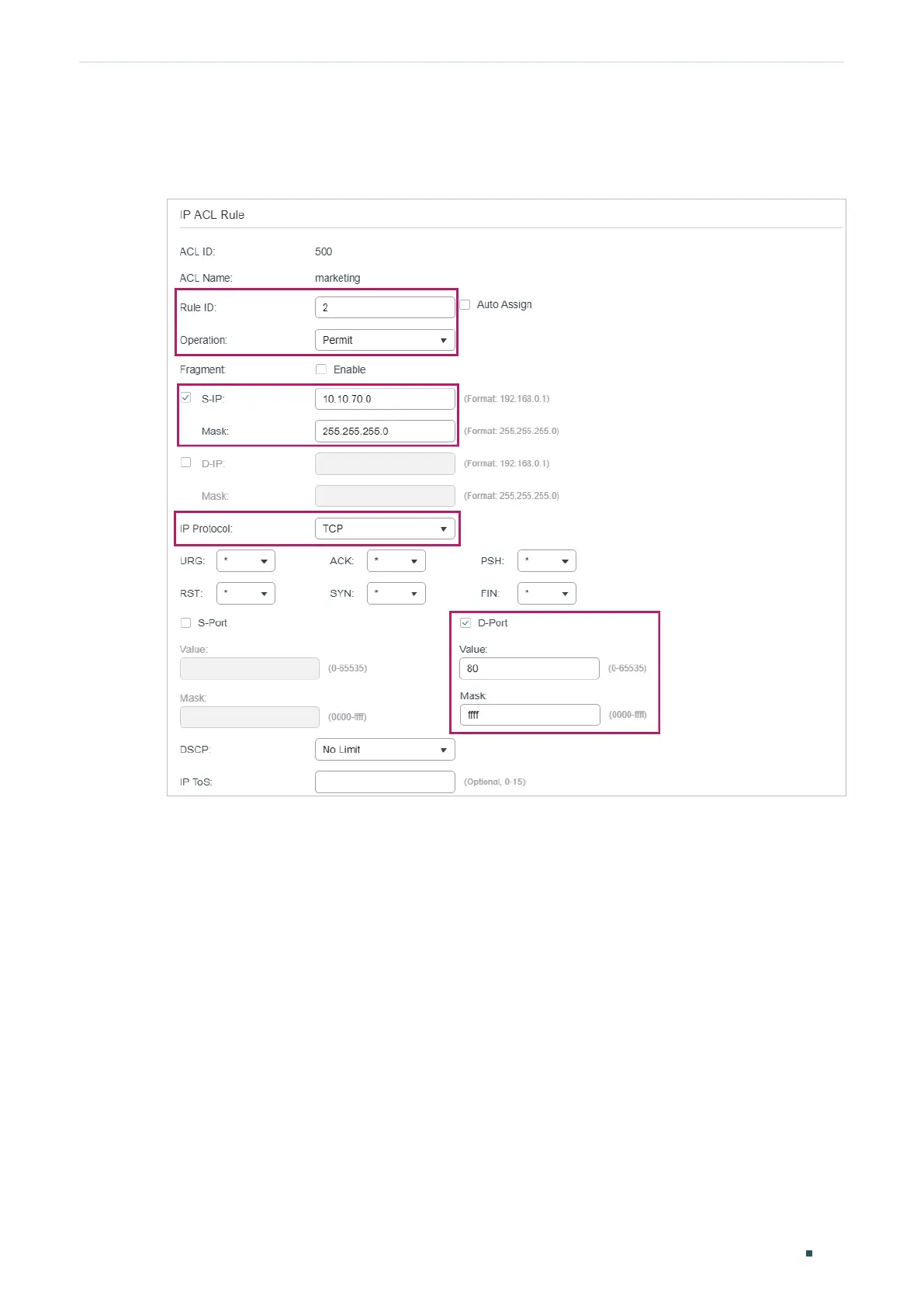

Figure 3-17 Configuring Rule 2
