Configuring ACL Configuration Example for ACL

User Guide

831

6) In the same way, configure rule 4 and rule 5 to permit packets with source IP 10.10.70.0

and with destination port TCP 53 or UDP 53 (DNS service port).

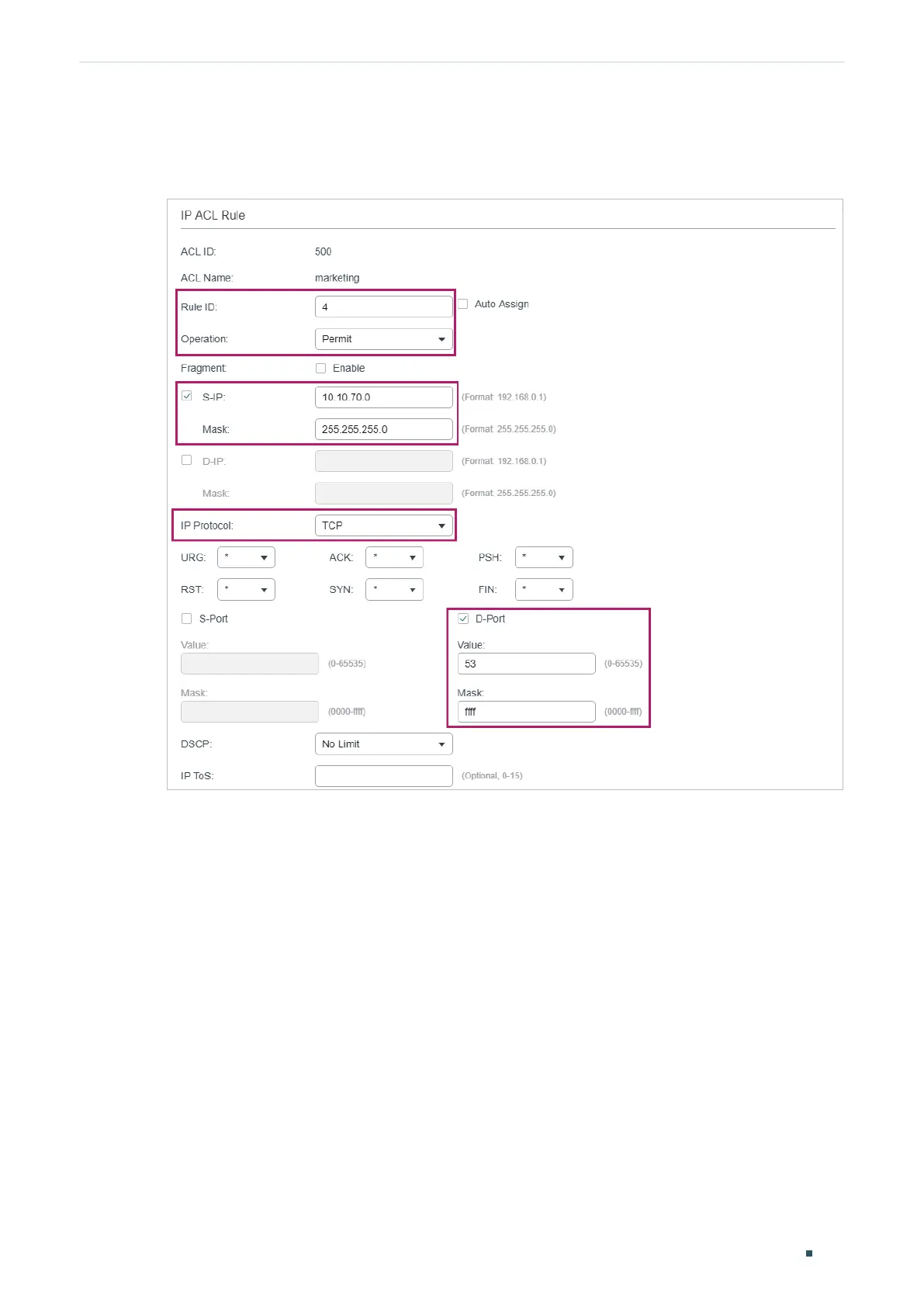

Figure 3-19 Configuring Rule 4
