User Guide 832

Configuring ACL Configuration Example for ACL

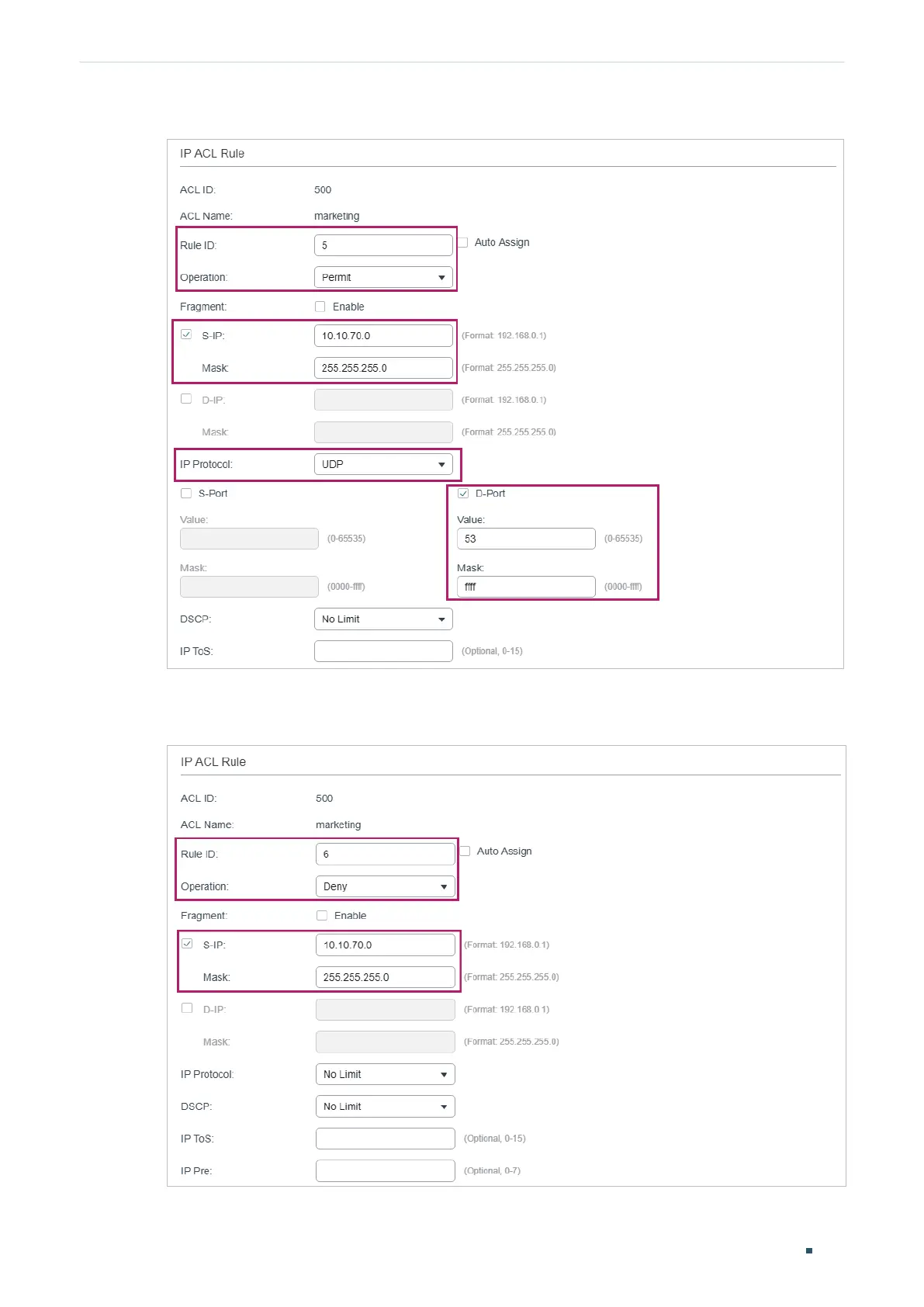

Figure 3-20 Configuring Rule 5

7) In the same way, configure rule 6 to deny packets with source IP 10.10.70.0.

Figure 3-21 Configuring Rule 6
