Configuring ACL Configuration Example for ACL

User Guide

839

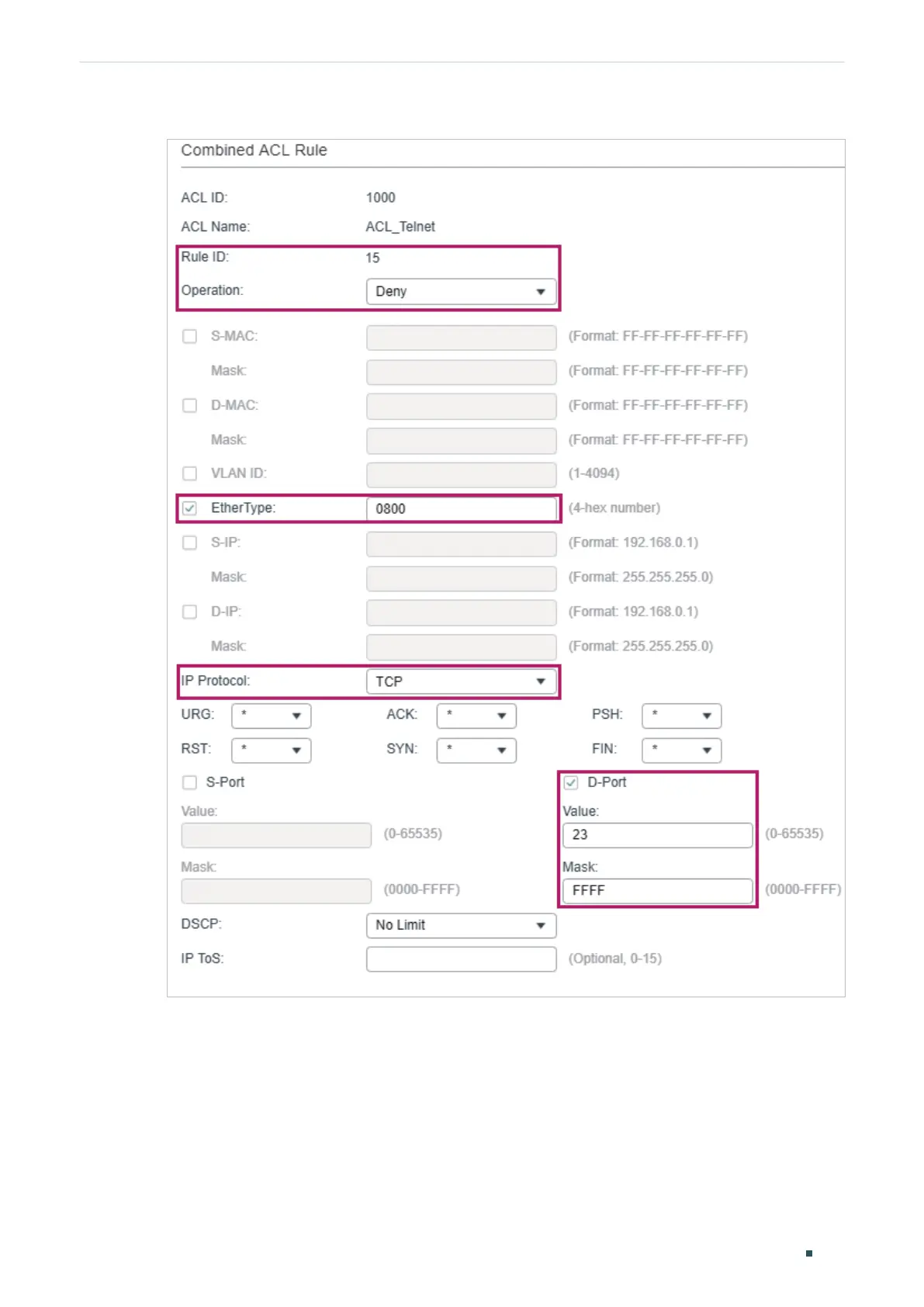

Figure 3-28 Configuring Rule 15

6) In the same way, configure rule 25 to permit all the packets. The rule makes sure that all

devices can get other network services normally.
