NEC Univerge SV9100 - Figure 3-1 CHS2 UG-US Chassis (Front View); Figure 3-2 CHS2 UG-US Chassis (Rear View)

Issue 3.0
SV9100 System Hardware Manual 3-7

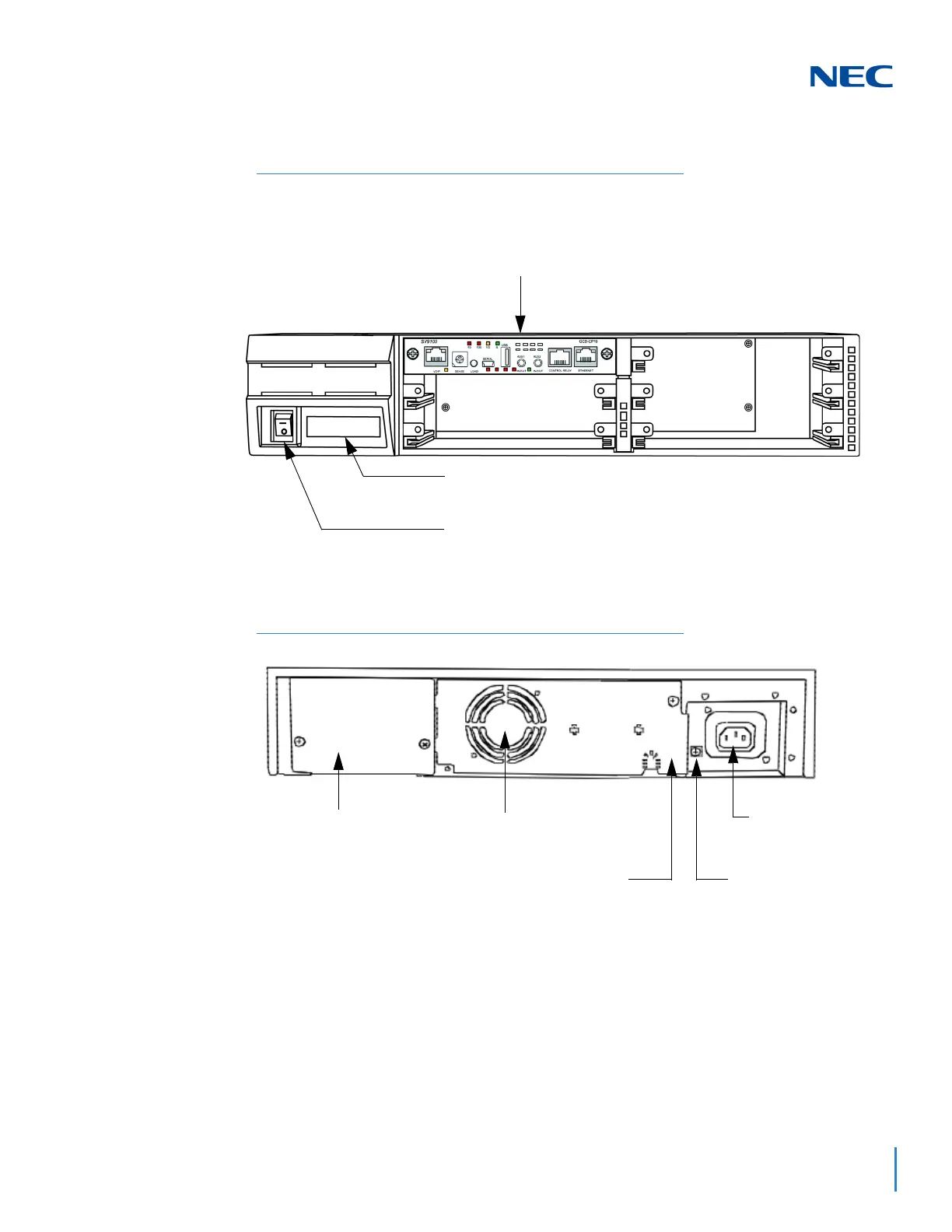

Figure 3-1 CHS2UG-US Chassis (Front View)
Figure 3-2 CHS2UG-US Chassis (Rear View)
Universal Slot for Legacy Line/Trunk blades and
Application blades (six slots). When used as
controlling chassis, the GCD-CP10 is mounted in Slot
1 (shown).
Slot for GPZ-BS10/GPZ-BS11 blade
– Connection with CHS2UG-US chassis
Power Switch
Fan Unit
(inside of cover)
Internal Battery Mount
Battery Connector
(inside of cover)
AC Connector
Frame Ground
(FG) Terminal
