NEC Univerge SV9100 - Figure 5-120 Wall Mount Spacing Guide (DSS WM-L UNIT)

Issue 3.0
5-102 Installing DT Series Digital and IP Multiline Terminals
5.2.14 DSS WM-L UNIT
The DSS WM-L UNIT (Wall Mount Unit) is used to attach the DCL-60-1/
DCZ-60-2 CONSOLE to the wall. This unit connects to the bottom of the
terminal.
5.2.14.1 Mount DCL-60-1/DCZ-60-2 CONSOLE on Wall using
DSS WM-L UNIT
Use the template shown in Figure 5-120 Wall Mount Spacing
Guide (DSS WM-L UNIT) for required spacing before drilling.

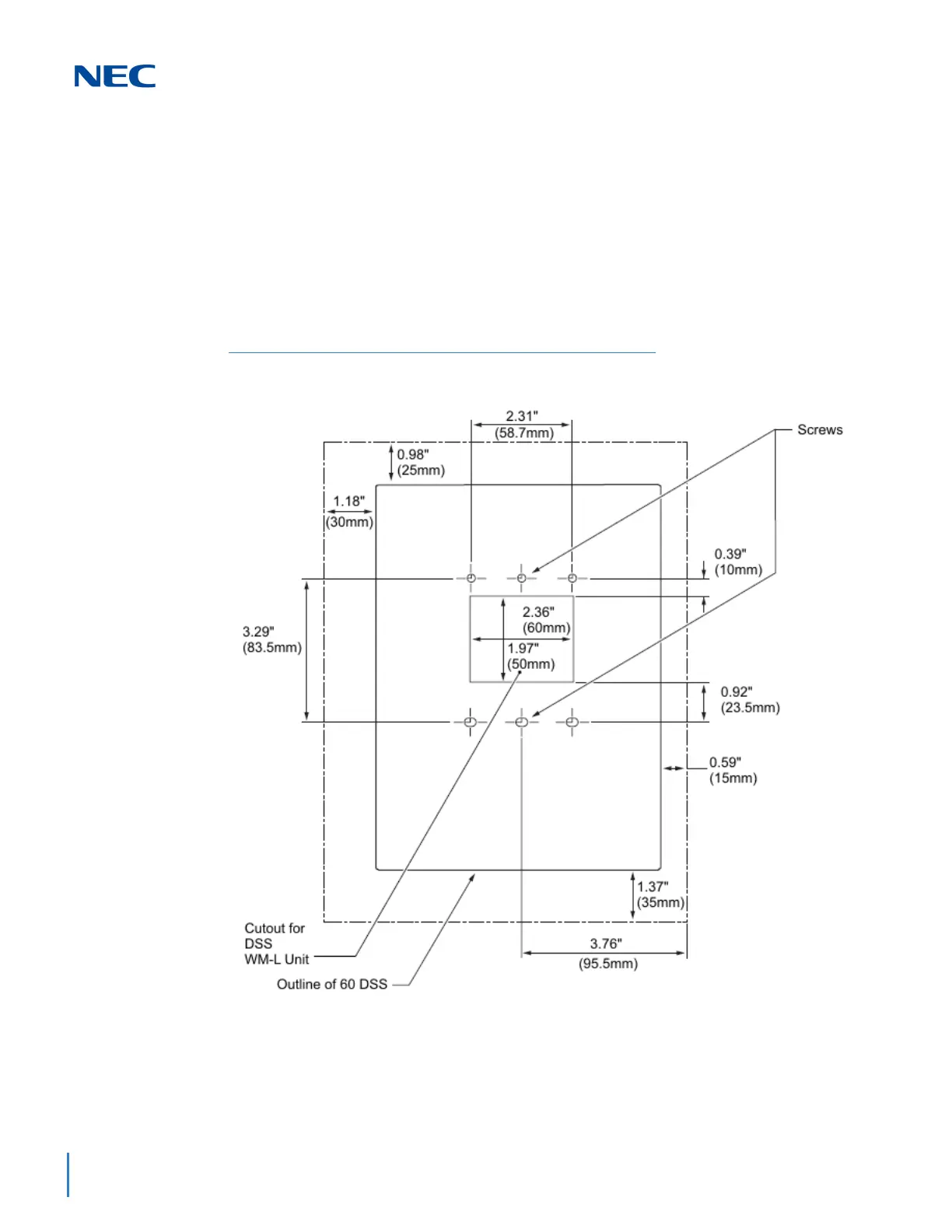

Figure 5-120 Wall Mount Spacing Guide (DSS WM-L UNIT)
