NEC Univerge SV9100 - Figure 3-110 Secure Cable in Support Bracket; Figure 3-111 Installing Cable Support Guide

Issue 3.0
SV9100 System Hardware Manual 3-89
5. Using tie wraps, secure CHS2U BATT CABLE INT in cable guide
bracket.
6. With supplied screw, install cable guide in chassis.
7. Install two 2.3 AH-12V batteries (locally procured) into the CHS2UG
BATT MTG KIT (refer to Figure 3-112 Installing Two Batteries on page
3-90).

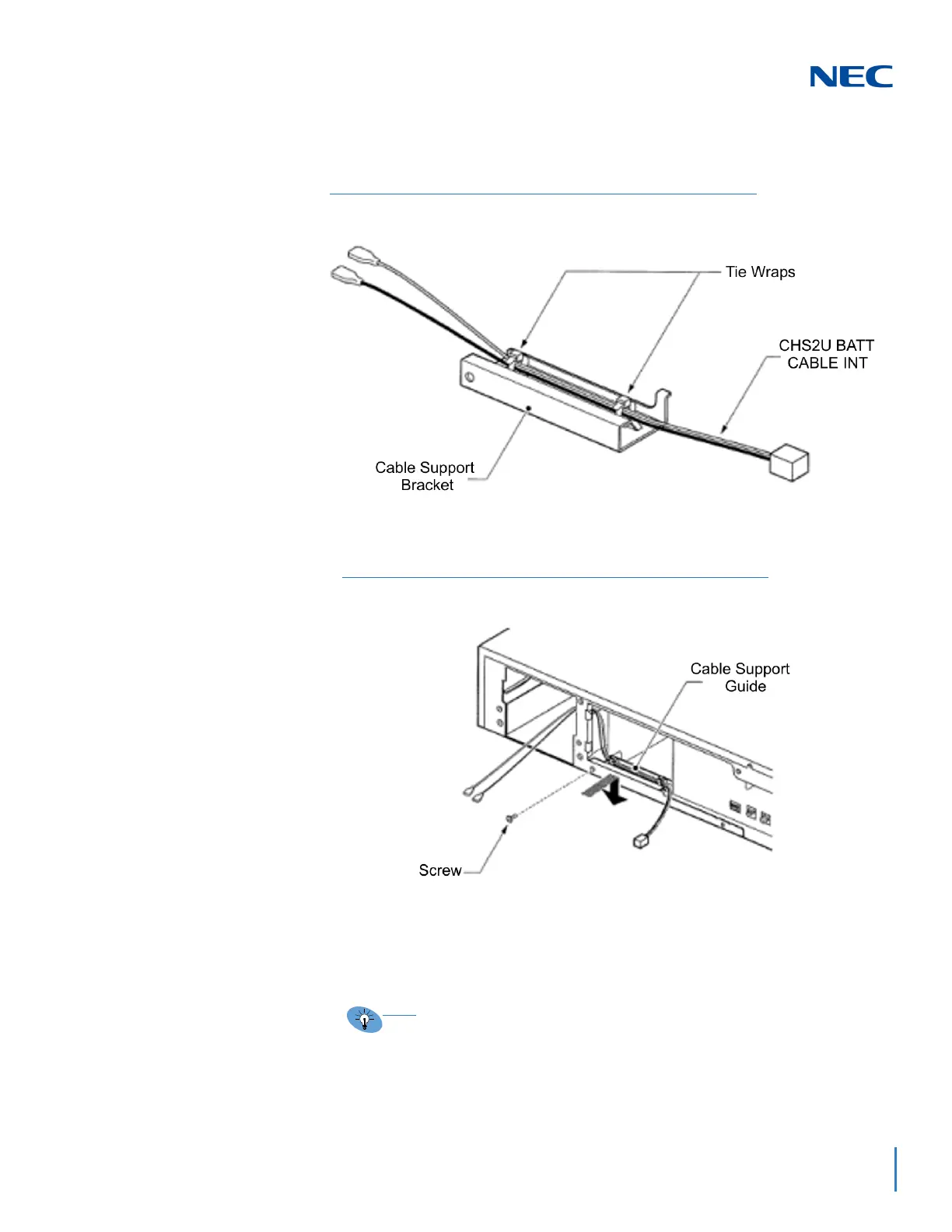

Figure 3-110 Secure Cable in Support Bracket
Figure 3-111 Installing Cable Support Guide
TIP
The first battery must be installed on the left side, then slid to the
right due to an installation tab on the mounting kit.
