NEC Univerge SV9100 - Figure 6-12 Placing the Telephone Cords Inside the Wall Mount Stand; Figure 6-13 Attaching the Wall Mount Unit to the Wall

Issue 3.0
SV9100 System Hardware Manual 6-9
5. Place the base unit on the posts of the wall screws and push down until it is
firmly seated.
6. Plug the other end of the short telephone cord into a telephone wall jack.
7. Plug the AC adapter into a standard 120 Vac wall outlet. Refer to Figure
6-10 Plugging the AC Adapter into the AC Wall Outlet on page 6-7.

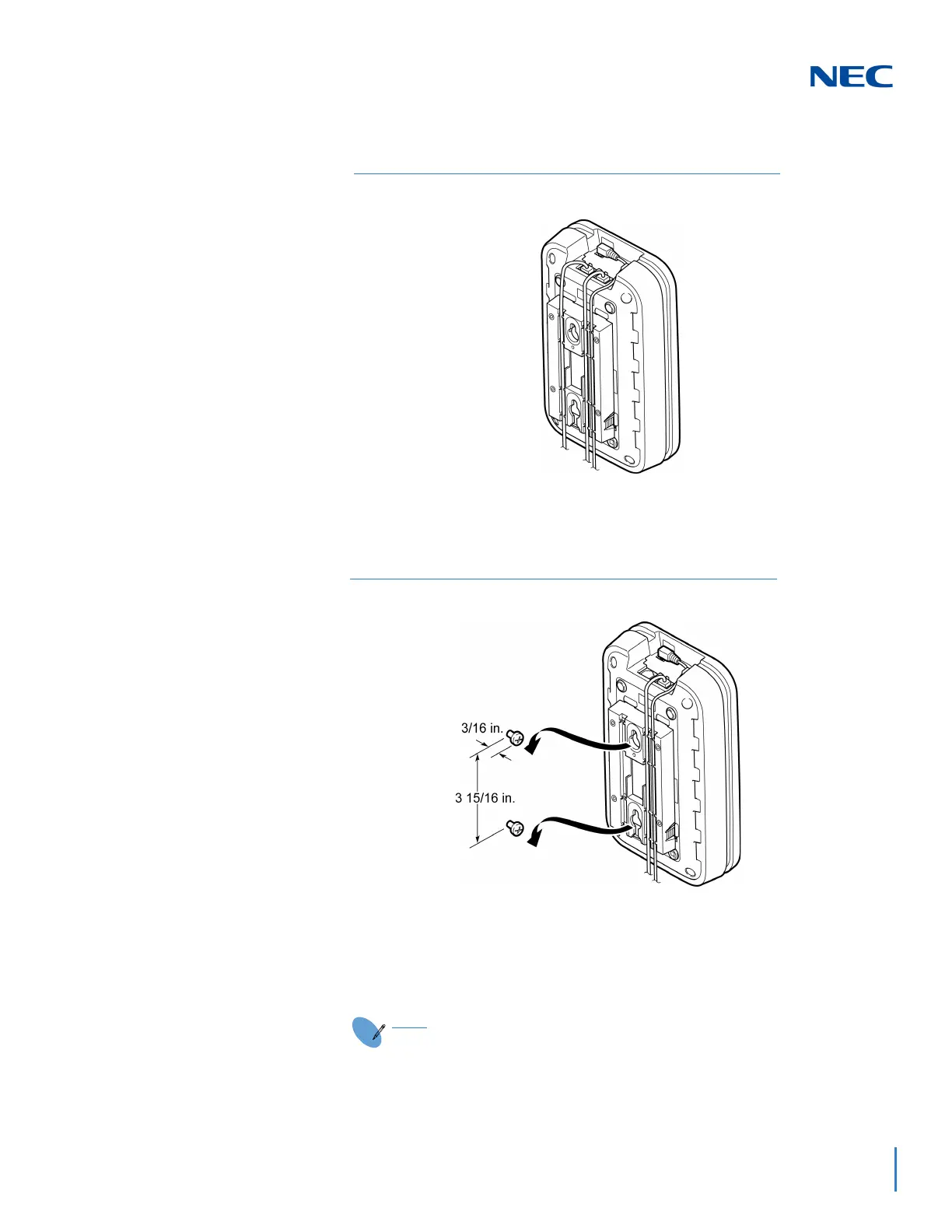

Figure 6-12 Placing the Telephone Cords Inside the Wall Mount Stand
Figure 6-13 Attaching the Wall Mount Unit to the Wall
NOTE

Do not use an outlet controlled by a wall switch.
