Issue 3.0
3-62 Installing the SV9100 Chassis
6. Connect grounding wire to chassis. Refer to Chapter 4 paragraph 3.5
Installing the 9.5” Base (CHS2UG B-US) and Expansion
(CHS2UG E) Chassis on page 3-24 for complete details on grounding
the system.
7. Refer to 3.5.5 Install AC Power Cord on 9.5” Base and Expansion
Chassis on page 3-37 for installation of the power cord or, Chapter 6
paragraph 2.1 Installation and Safety Precautions on page 4-4 for
installation of blades.

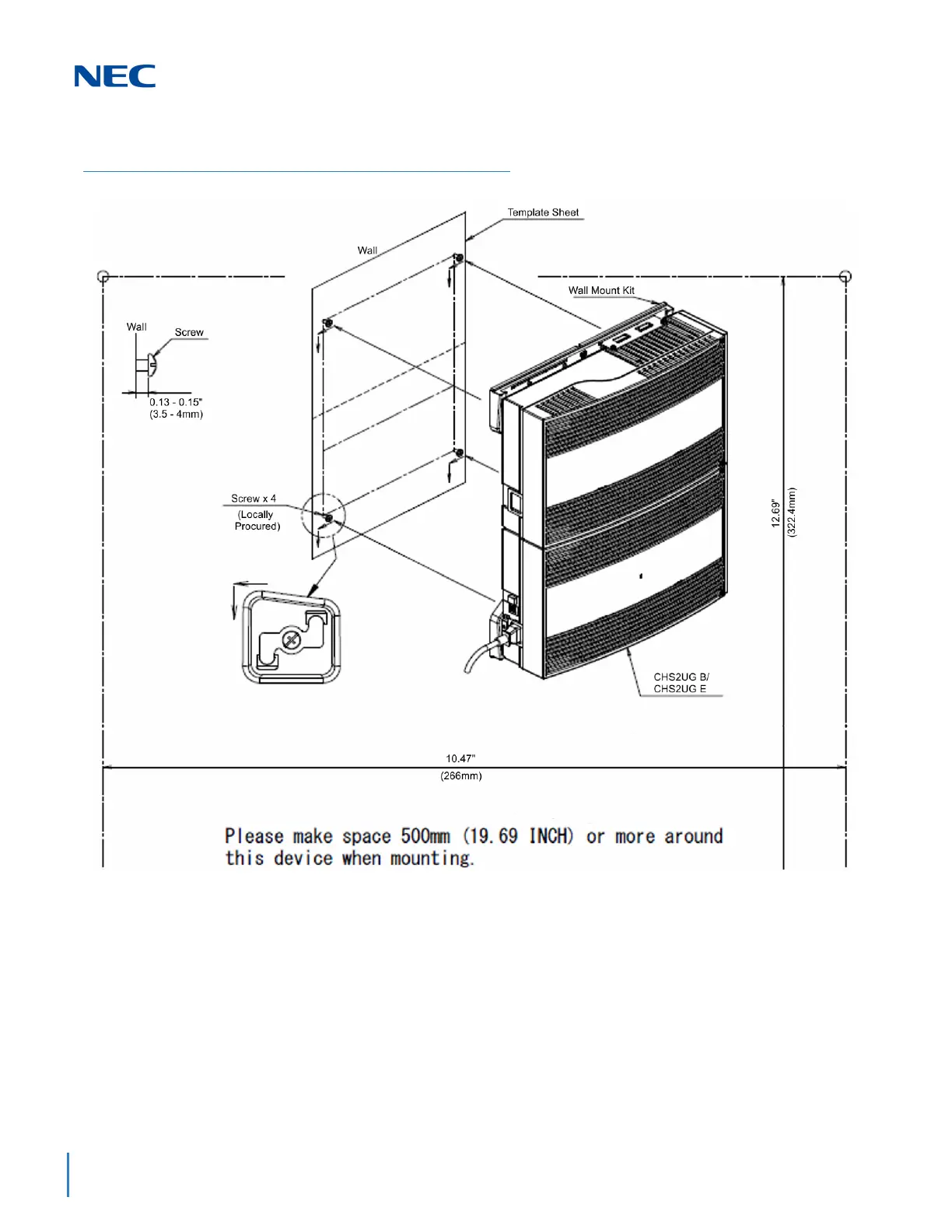

Figure 3-76 Wall Mount Spacing Guide – 9.5” Base and Expansion Chassis
