NEC Univerge SV9100 - Figure 3-57 Install Upper Bracket (9.5 Chassis)

Issue 3.0
SV9100 System Hardware Manual 3-49
6. Align holes E and F on the MV bracket (upper) with holes on the 9.5
inch Basic Chassis (CHS2UG B-US). Install 2 M4 x 14 screws.
2 M4 x 14 screws are provided with the CHS2UG - MOVABLE WALL
MOUNT KIT.
7. Install the screws in the holes closest to the wall side of the bracket
(refer to Figure 3-57 Install Upper Bracket (9.5” Chassis)).
8. If the CHS2UG B SMALL BATT BOX is mounted on the 9.5 inch
chassis, install the screws in the holes on the left edge of the bracket
(refer to Figure 3-58 Optional Small Battery Box (9.5” Chassis) on
page 3-50).

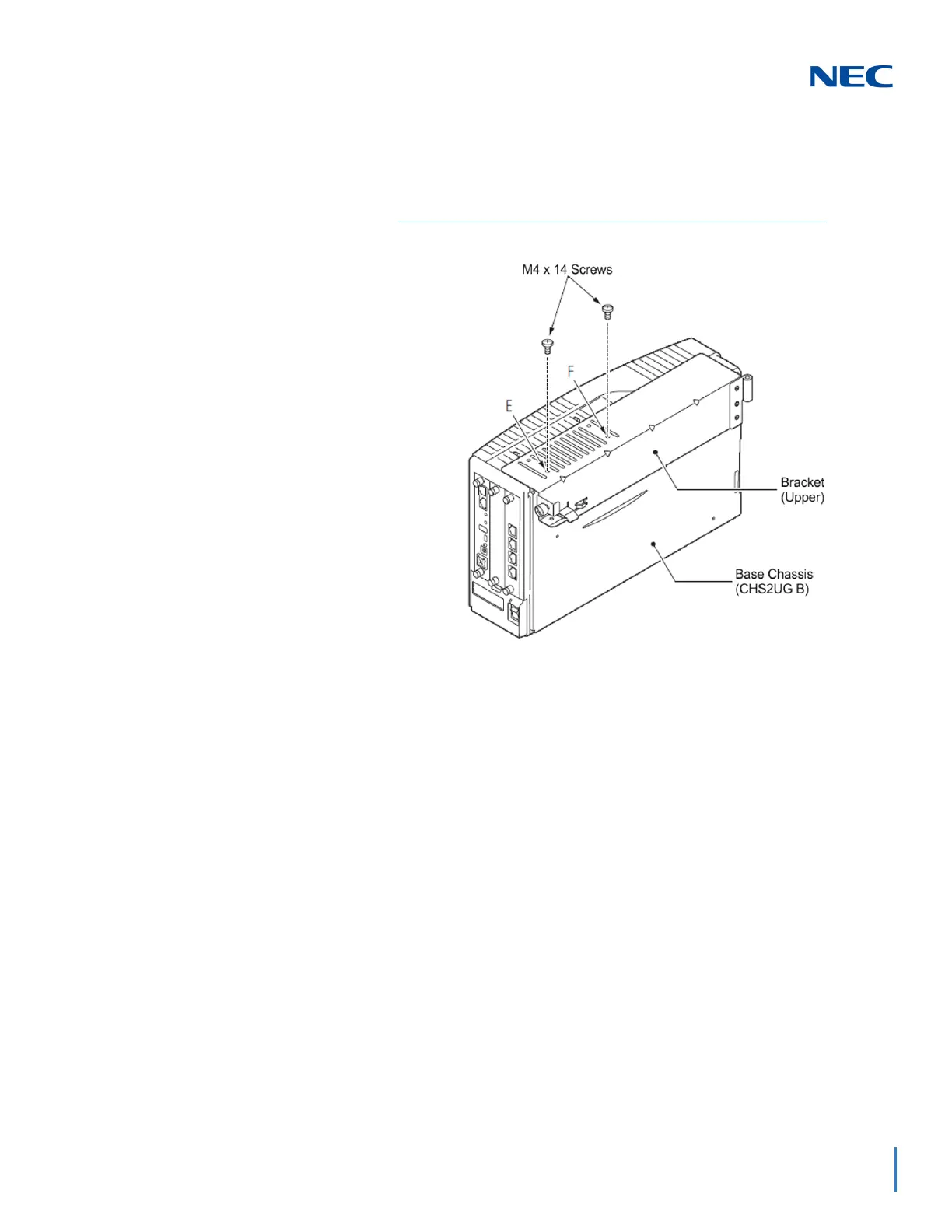

Figure 3-57 Install Upper Bracket (9.5” Chassis)
