Issue 3.0
SV9100 System Hardware Manual 9-137
10. Gently press the serial cable into the grooved cutout for the cable.
11. Connect the serial connection cord (refer to Figure 9-121 Attach
PSA-L UNIT to the Multiline Terminal on page 9-136) from the PSA-L
UNIT to the terminal body.
12. Open the Dip Switch Cover (refer to Figure 9-117 PSA-L UNIT
Connections on page 9-134). Set the dip switch on the PSA-L adapter
to the required position. Close the cover.
13. If using the handset, place the stopper in the tilt leg.

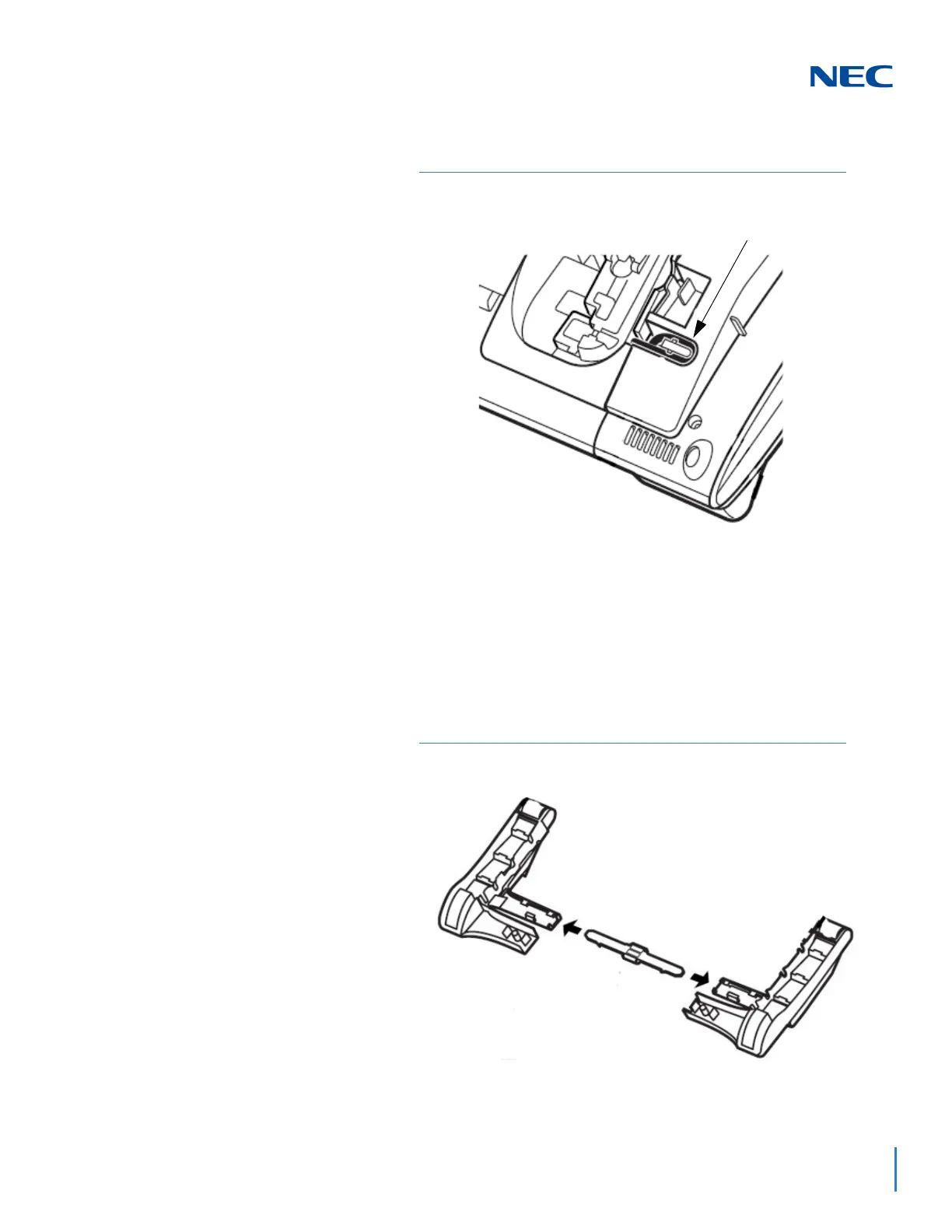

Figure 9-122 Grooved Cutout for Serial Cable
Figure 9-123 Insert Stopper for Handset Use
