Issue 3.0
9-88 Installing SV9100 Optional Equipment
12.2.7.2 Port Configuration Tab
Allows the user to configure the location where recorded TDM
or IP calls are to be stored and the name associated with the
recorded file. Ensure the Enable the port for recording box is
checked if you want to record.
 A name can be given so the administrator can easily
determine the user or phone associated with the serial or
port number. This is done by assigning a Channel Name in
the Channel Name: field.
 In Settings enter the File Path name for the Recorded Call
Storage location or, click on the folder icon to use the
browse option.
 It is recommended that you create a Master Calls folder with
a subfolder for each device. This makes it easier to search
for archived calls.

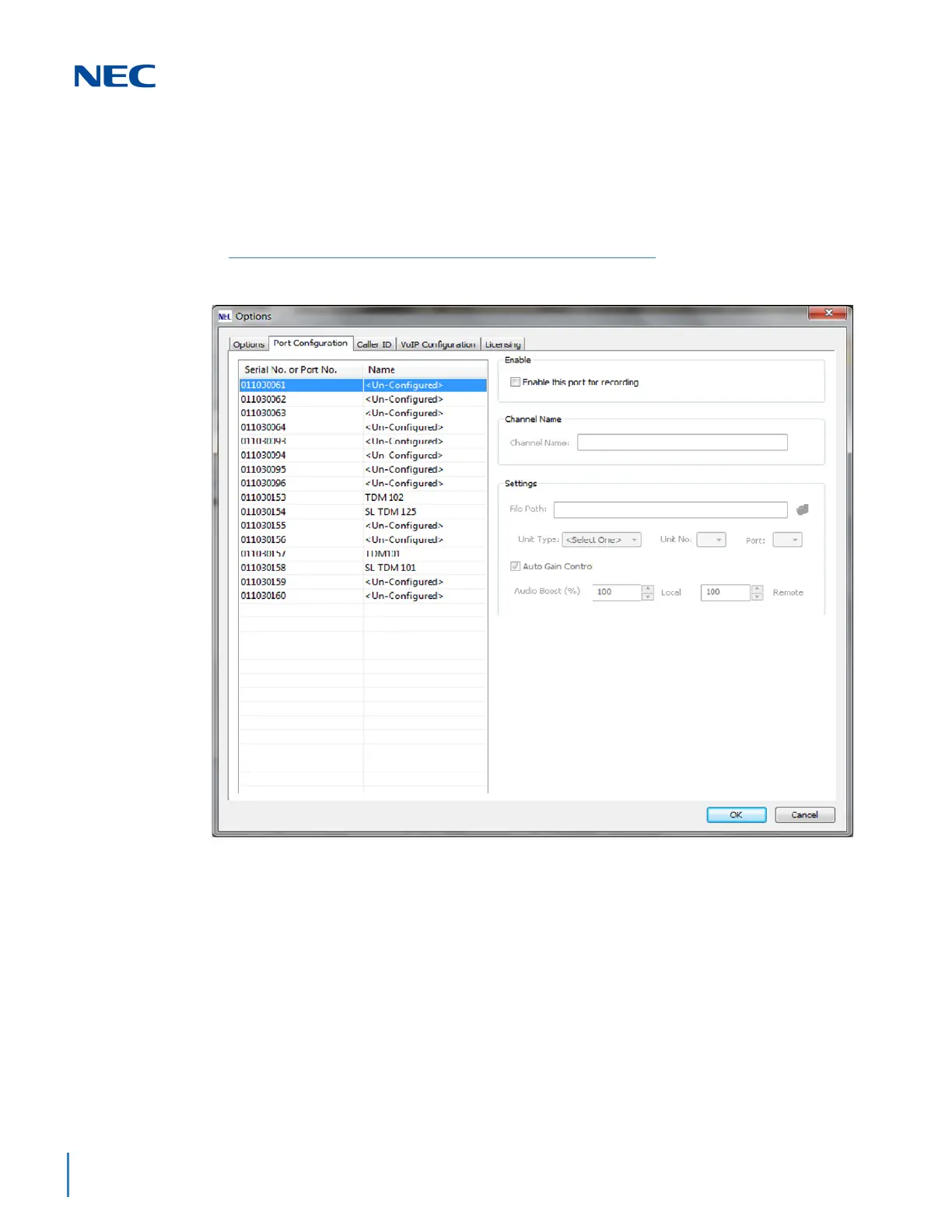

Figure 9-71 Port Configuration Tab
