NEC Univerge SV9100 - Figure 4-20 GCD-LTA Blade

Issue 3.0
4-54 Installing the SV9100 Blades
4.7 GCD-LTA (D
term
/SLT Combination)
4.7.1 Description
The Digital Station/SLT Combination blade provides eight Digital Station
ports and two analog ports. This blade allows either a GPZ-4COTF analog
trunk daughter board or GPZ-2BRIA daughter board to be installed.

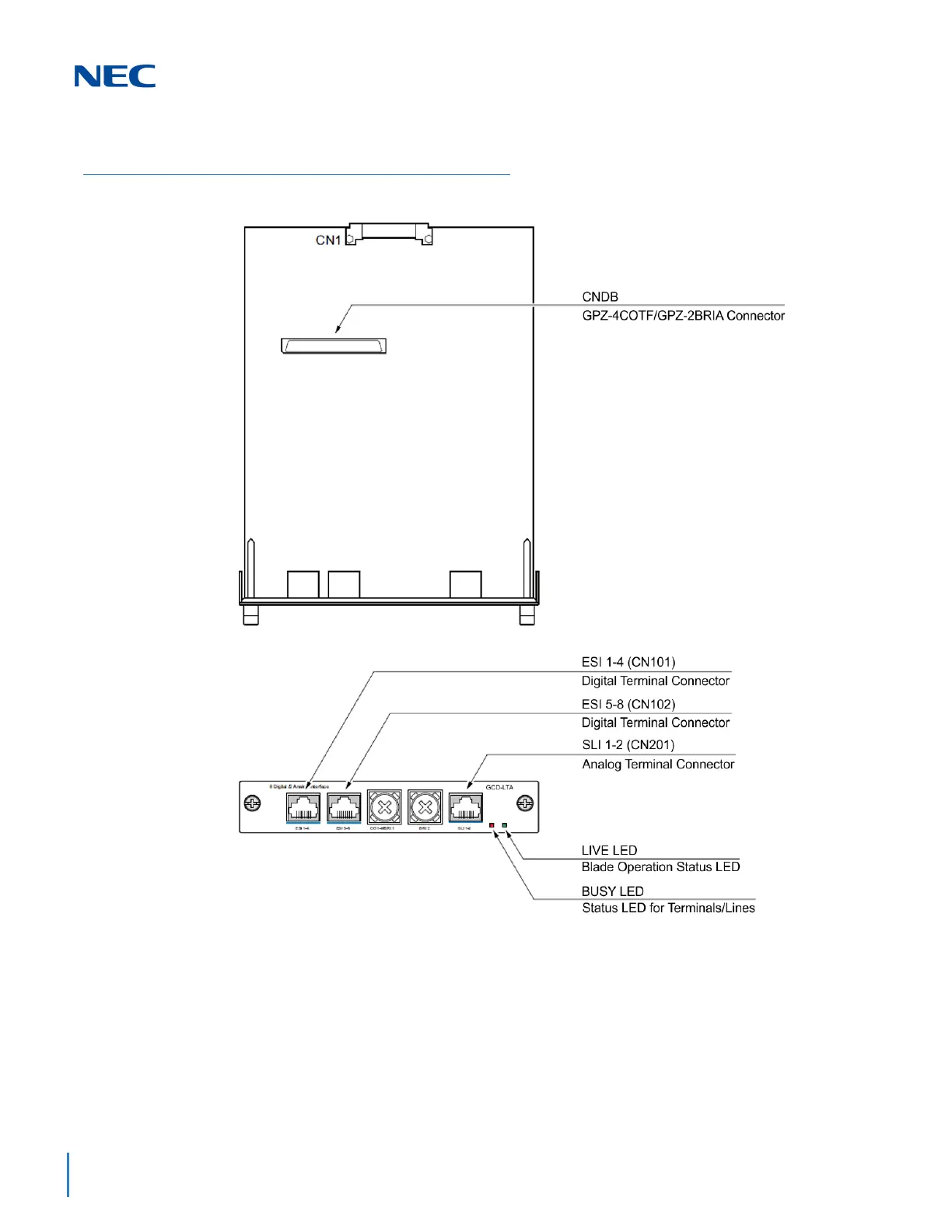

Figure 4-20 GCD-LTA Blade
