NEC Univerge SV9100 - Figure 3-87 Install Rubber Feet for Multiple Chassis; Figure 3-88 Install Metal Brackets with Screws

Issue 3.0
SV9100 System Hardware Manual 3-71
5.1.2 Multiple CHS2UG-US Chassis Installation
Expansion chassis can be secured to the CHS BASE UNIT and require an
additional CHS2UG JOINT BRACKET KIT per chassis.
1. Install the five rubber feet to the bottom of each chassis.
2. Using supplied screws in the CHS2UG JOINT BRACKET KIT, attach
metal brackets to both ends of the 19” chassis and the CHS BASE
UNIT. Refer to Figure 3-88 Install Metal Brackets with Screws.

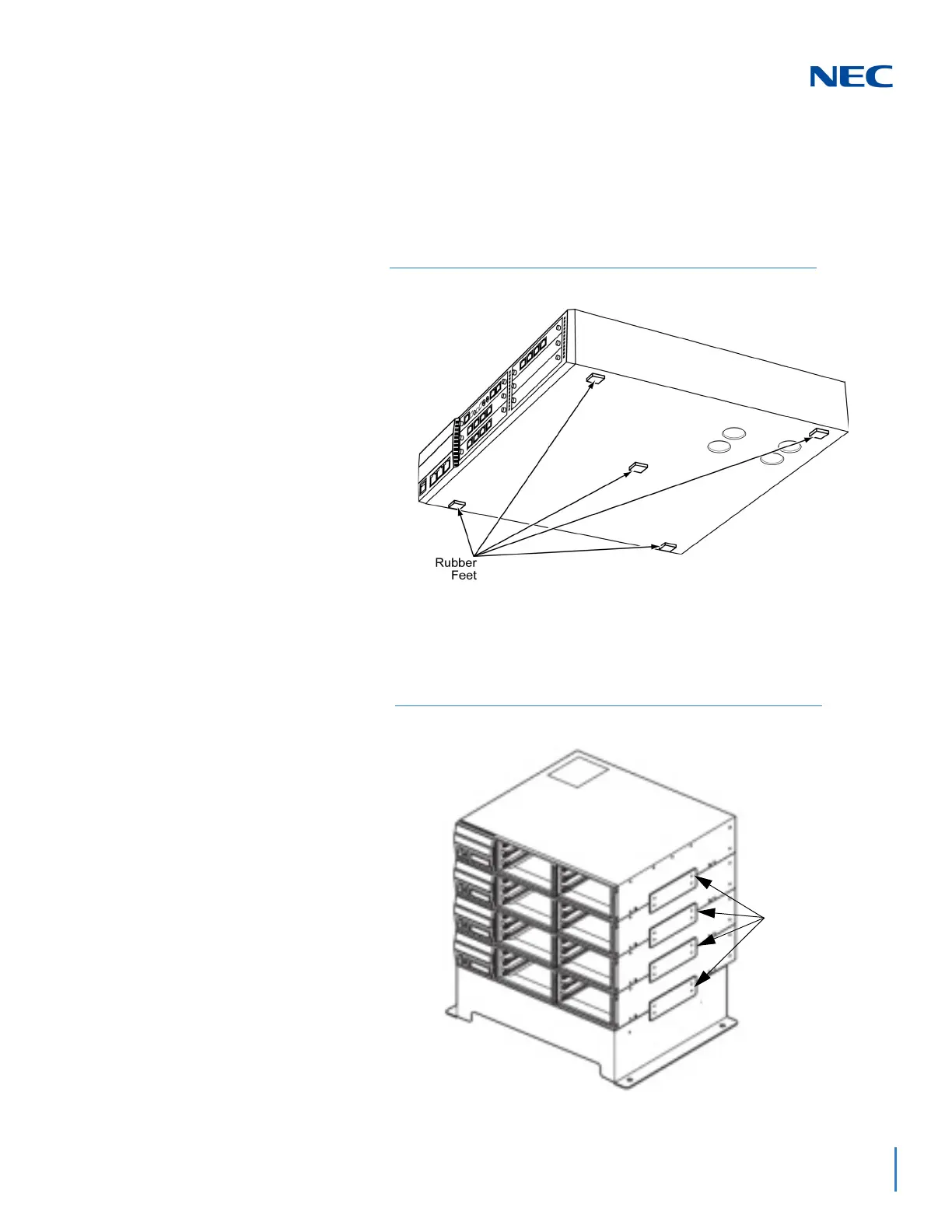

Figure 3-87 Install Rubber Feet for Multiple Chassis
Figure 3-88 Install Metal Brackets with Screws
Metal
Brackets
