11.2.2 Connectors
One PC USB connector that provides power and streams all speech
and control channel information to the host PC and desktop software.
Two digital telephone line connections that passively tap across the
D
term
digital connection and listen in high impedance mode to the
signaling on the line.
11.3 Installation
The VSR is packaged with everything necessary for installation including:
Software CD
USB Cable
Telephone connection lead

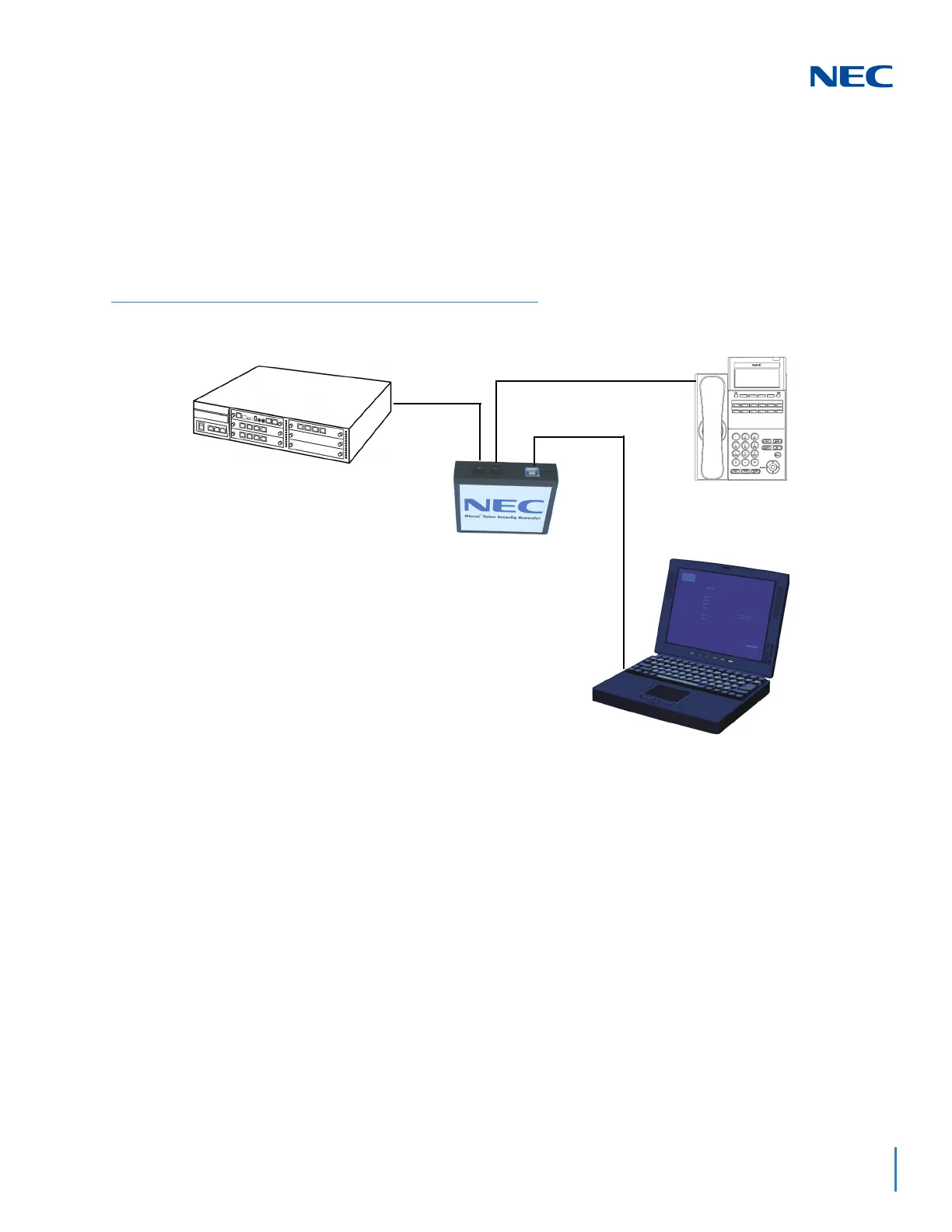

Figure 9-20 VSR Connection Configuration
SV9100
Digital Port
Ter m i n a l
PC with USB Port
Dterm VSR
Player
