Issue 3.0
5-50 Installing DT Series Digital and IP Multiline Terminals
4.3 Connecting the DT700/DT800 Series IP Multiline Terminal to the
Network and PC
These instructions for connecting an IP multiline terminal to the Network and PC
apply to DT700/DT800 series multiline terminals.
Confirm the location of AC adapter and the LAN connector at the back of the multiline
terminal. Then connect the multiline terminal using the steps shown below.
1. Connect the LAN Network 10 Base-T/100 Base-TX cable to the LAN (=) connector.
2. The IP terminal has a switching HUB to connect a PC to the LAN Network. Connect
the 10 Base-T/100 Base-TX straight cable used for this connection to the PC(x)
connector and to the PC.
The ITL-12CG and ITL-12DG terminals also support a 1000BASE-T interface.
Refer to Figure 5-40 IP Terminal Connector Locations.

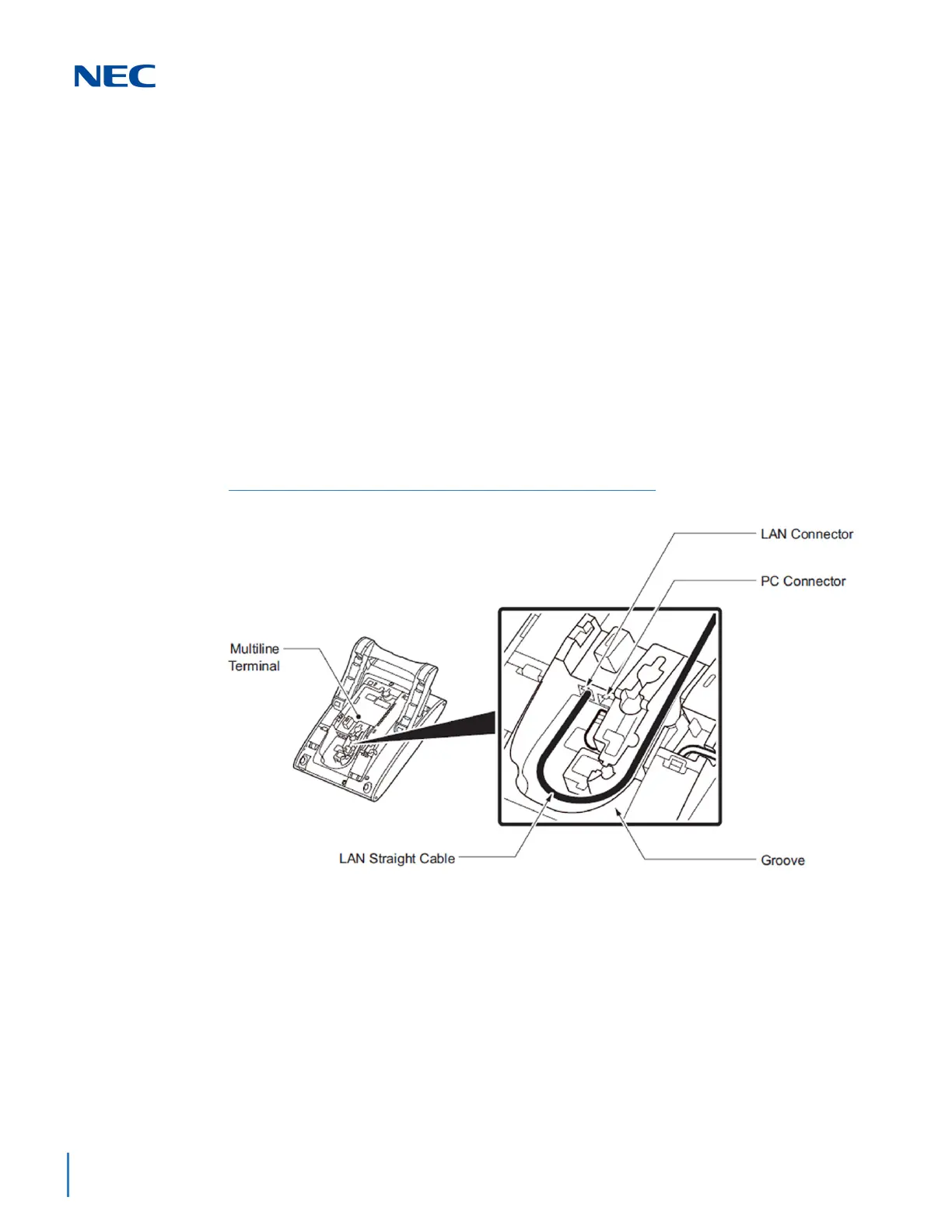

Figure 5-40 IP Terminal Connector Locations
