16. Attach the analog trunk cable and the handset cable. Refer to Figure
9-117 PSA-L UNIT Connections on page 9-134.
17. Install the legs, pushing upwards until both locks snap into place.
18. Return tilt leg to desired position.
19. Place the multiline terminal numbered keypad up.
20. Connect the Line cord, the PSTN cable and the Handset cord (if
used).
21. Remove both plastic panels from the front of the multiline terminal.
22. Pull tab down and lift out the numbered keypad panel.

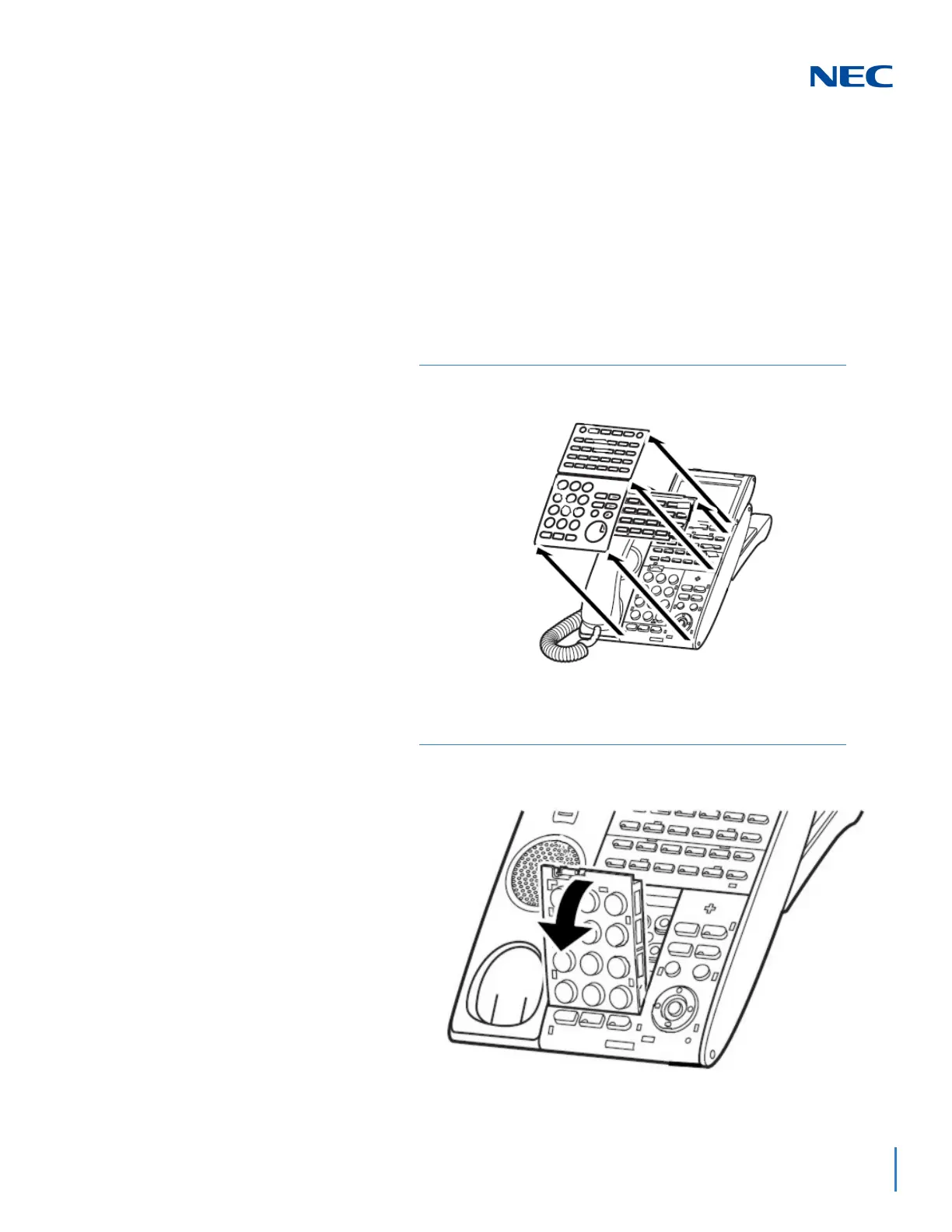

Figure 9-126 Remove Plastic Panels
Figure 9-127 Remove Numbered Keypad
