6.1.4.4 RS-232 Serial Cable (DCE)
6.1.4.5 USB Interface
The
APSU provides two USB interfaces that can be used for
the following devices:
 USB Keyboard
 USB Memory Device
6.1.4.6 VGA Display Interface
The
APSU card provides a VGA display interface through a
standard DB-15 connector.
6.1.4.7 10 Base-T/100 Base-TX Ethernet Interface
The
APSU card provides a 10 Base-T/100 Base-TX Ethernet
interface through an RJ-45 connector. Some possible uses for
the Ethernet port are the following:
 Unified Messaging (Email)
 Software Update
 Application Configuration
 Text to Speech and Speech Recognition using an external
server
 Network Attached Storage (NAS)

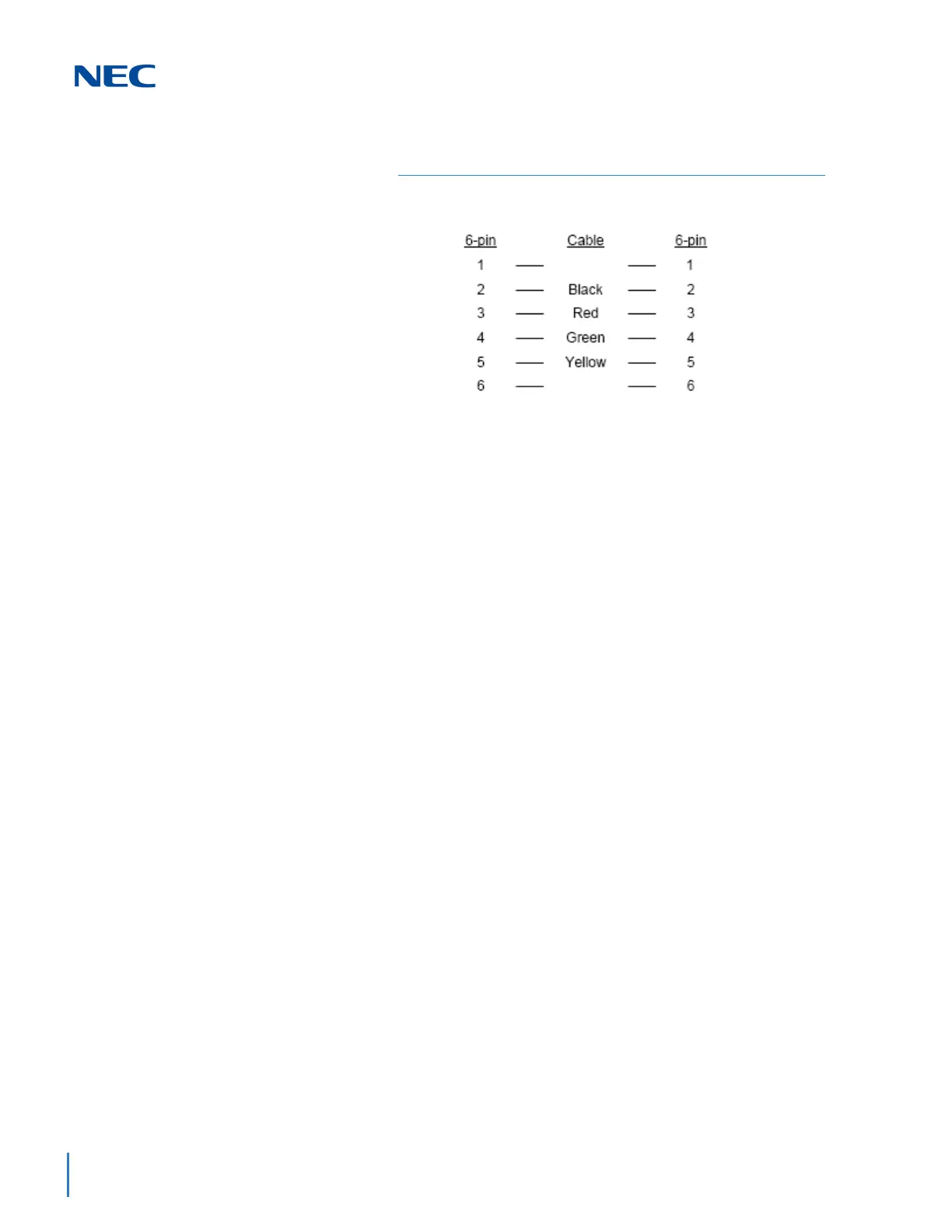

Figure 4-38 GCD-VM00 RS-232 Serial Cable (DCE)
