6. Reconnect AC power cable to rear of 9.5” chassis.
7. To power on the 9.5” chassis, refer to Chapter 4, 2.6 Powering Up the
SV9100 System on page 4-9.
8.4.3 CHSG LARGE BATT BOX Fuse Replacement
To replace the fuse(s) in the CHSG LARGE BATT BOX, refer to Chapter 3,
section 8.2.4 CHSG LARGE BATT BOX Fuse Replacement on page 3-101.
SECTION 9 POWER SUPPLY

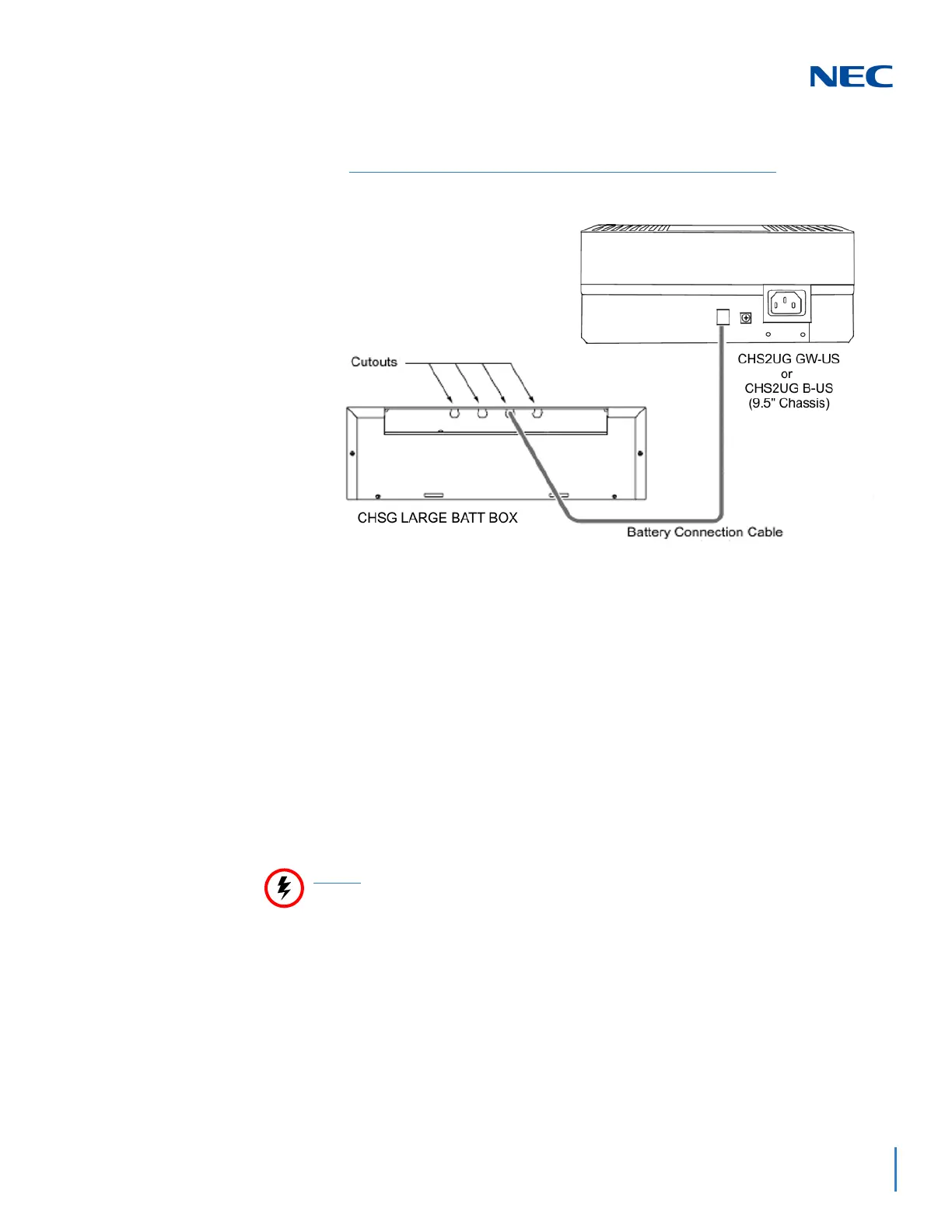

Figure 3-150 CHSG LARGE BATT BOX to CHS2UG GW-US or
CHS2UG B-US Connection
Do not attempt to replace the power supply on the CHS2UG-US or CHS2UG
GW-US chassis. The MPS7101 is not a field replaceable part. If the power
supply fails, contact NEC.
