Issue 3.0
5-94 Installing DT Series Digital and IP Multiline Terminals
5.2.13 WM-L UNIT
The WM-L UNIT (Wall Mount Unit) is used to attach any DT Series multiline
terminal to the wall. This unit connects to the bottom of the telephone.
When optional adapters are used, the multiline terminal must be installed on
the wall using the WM-L UNIT.
5.2.13.1 Mount Multiline Terminal on Wall using WM-L UNIT
Use the template shown in Figure 5-106 Wall Mount Spacing
Guide (WM-L UNIT) on page 5-94 for required spacing before
drilling.
1. Attach the WM-L UNIT to the wall using six screws or, using
two wall mounted screws (refer to Figure 5-107 Attach
WM-L UNIT Using Screws on page 5-95).

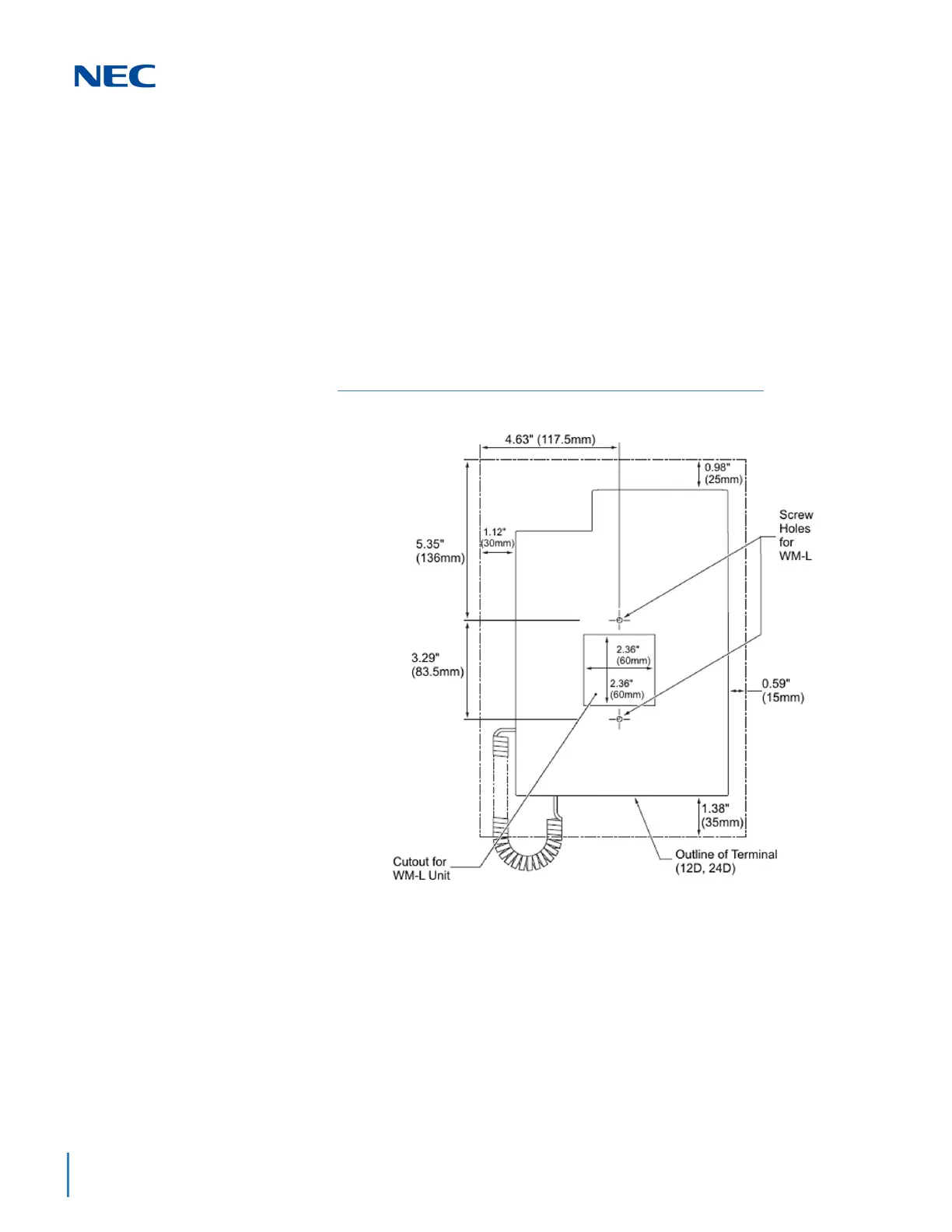

Figure 5-106 Wall Mount Spacing Guide (WM-L UNIT)
To Next Page
