Issue 3.0
SV9100 System Hardware Manual 4-87
SECTION 6 OPTIONAL BLADES
6.1 GCD-VM00 (Voice Mail and Server)
6.1.1 Description
This blade is a PC platform installed in the UNIVERGE SV9100 that
contains data storage for voice recording and application software
supporting a maximum of 16 ports.
A digital signal processor/voice processing section handles the following
functions:
 DTMF detection
 DTMF generation
 General tone detection
 FAX CNG tone detection
 PCM compression for audio recording/playback

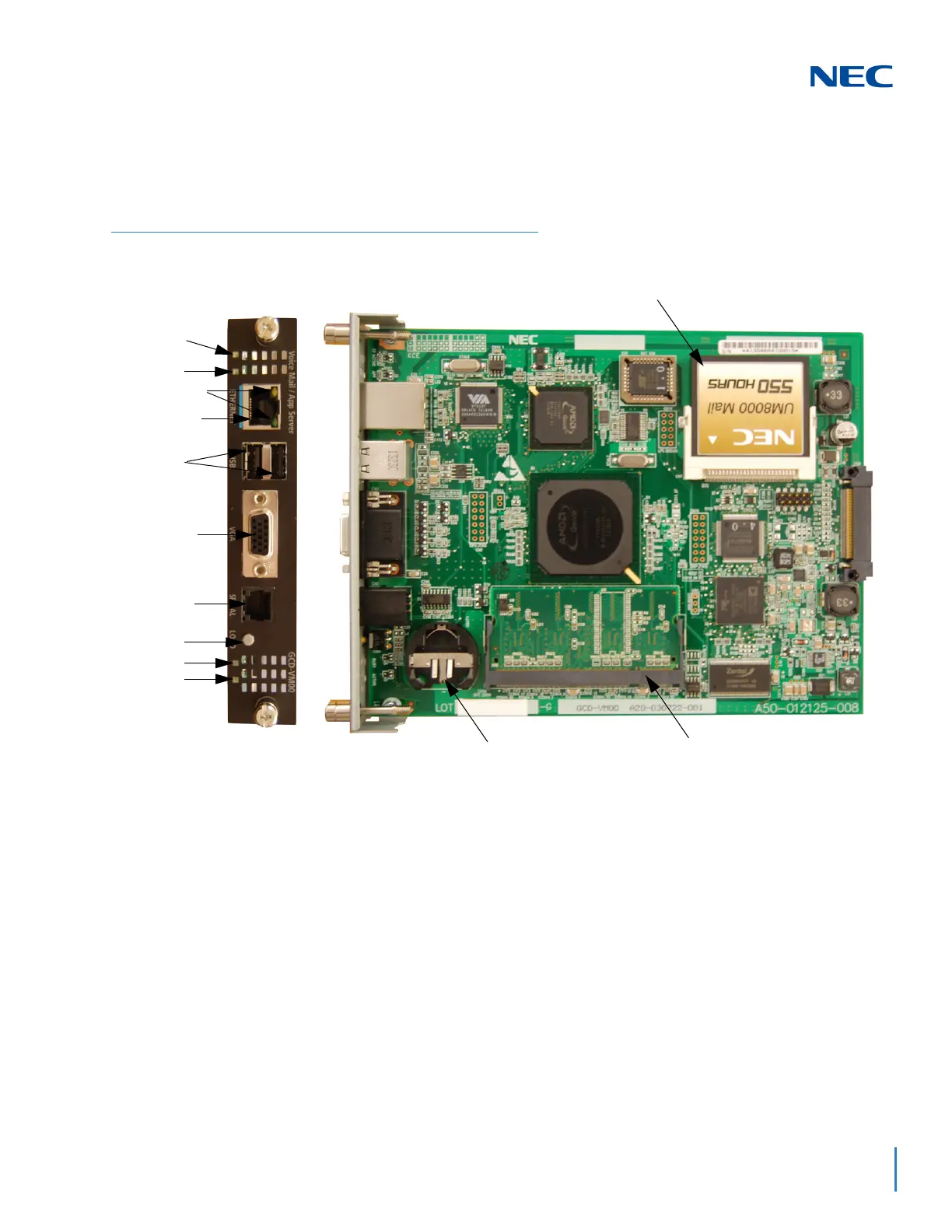

Figure 4-32 GCD-VM00 Blade
Flash Card
Memory
Battery Socket
Active LED
WAN
Busy LED
RJ-11/Serial
Load
VGA Monitor
USB
RJ-45/10/100
Ethernet LEDs
APP LED
CF Active
Drive LED
