Issue 3.0
3-78 Installing the SV9100 Chassis
6.2 Stand Mounting the 9.5” CHS2UG B Chassis
The 9.5” chassis can be stand mounted using the brackets supplied. The following
section describes this procedure.
1. Position the 9.5” Base Chassis so that the EXIFU slot is on top.
2. Align the Base unit with holes A, B, C and D on the lower side of the
CHS2UG B chassis. Attach with the provided M4 x 14 screws.
WARNING
This bracket is not for use with a combined Base (CHS2UG B-US)
and Expansion (CHS2UG E) chassis. A combined Base and
Expansion chassis should only be rack or wall mounted.
NOTE

Using the chassis stand unit (stand/floor mounting), will increase the
height of the chassis by 50 mm.

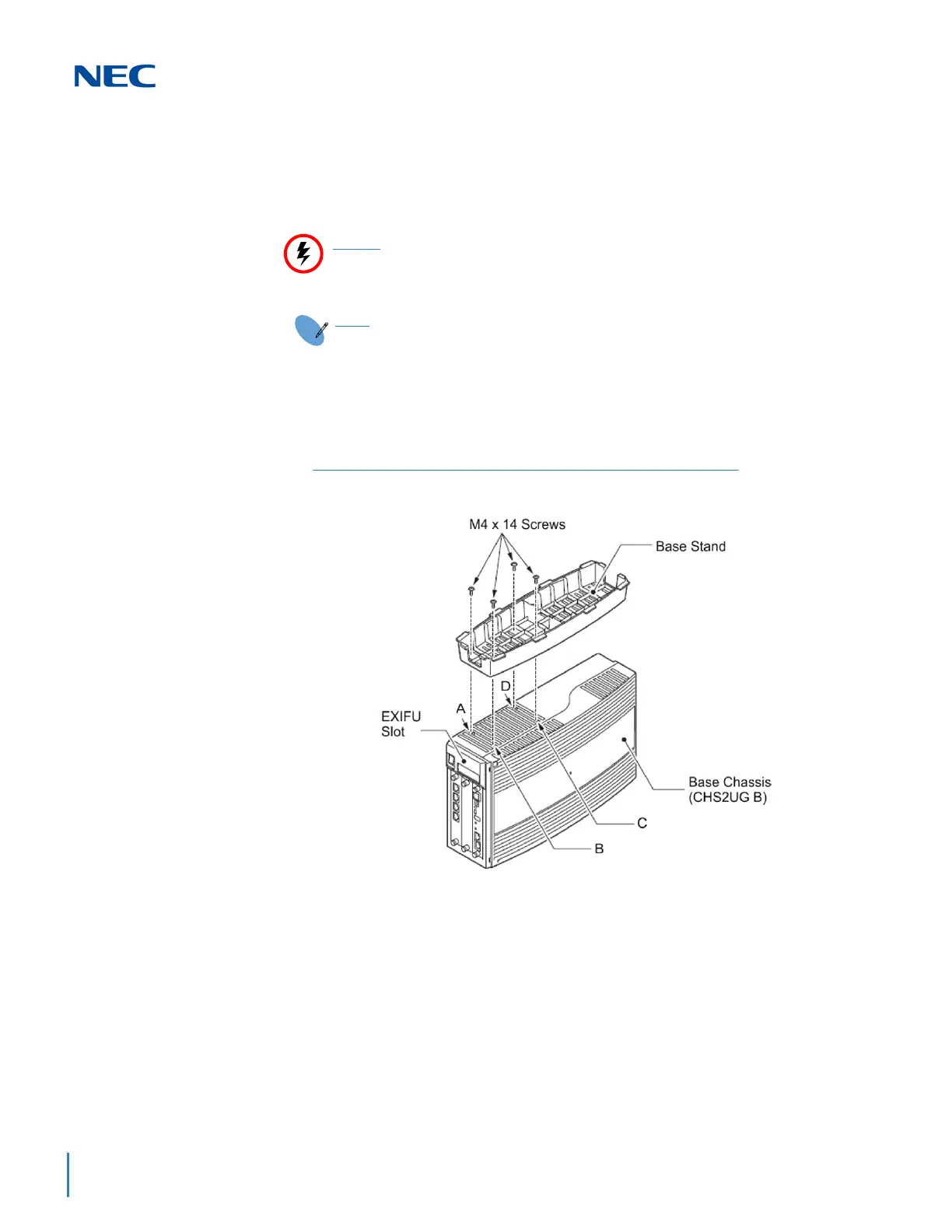

Figure 3-95 Attaching the Base Stand
