Issue 3.0
6-6 Installing SV9100 Cordless Telephones
2. Plug the AC adapter into the base unit.
3. Place the AC adapter cord inside the molded channel of the wall mount
stand.
4. Plug one end of the short telephone cord (locally supplied) in the LINE jack
on the base unit. Plug one end of the NEC digital multiline terminal into the
PHONE jack. Place the telephone cords inside the molded channels on the
bottom of the wall mount stand.
5. Plug the other end of the short telephone cord into the modular wall jack in
the center of the wall plate.

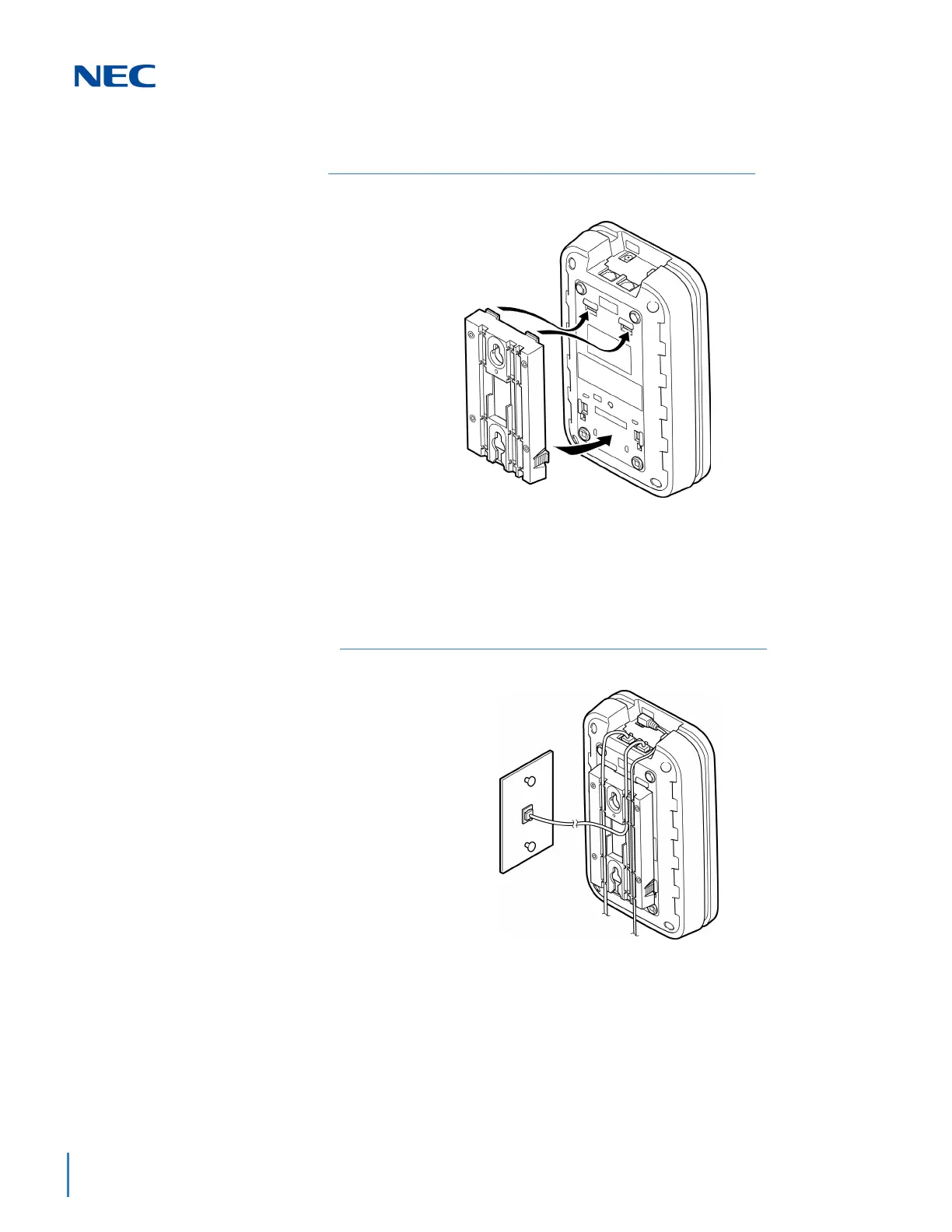

Figure 6-7 Attaching the Wall Mount Stand to the Base Unit
Figure 6-8 Placing the AC Adapter Cord Inside the Wall Mount Stand
