Issue 3.0
5-74 Installing DT Series Digital and IP Multiline Terminals
6. Install the 12LK-L KIT and slide until aligned with the Tab
Hole.
7. Press on the right end of the 12LK-L KIT until a click is
heard.

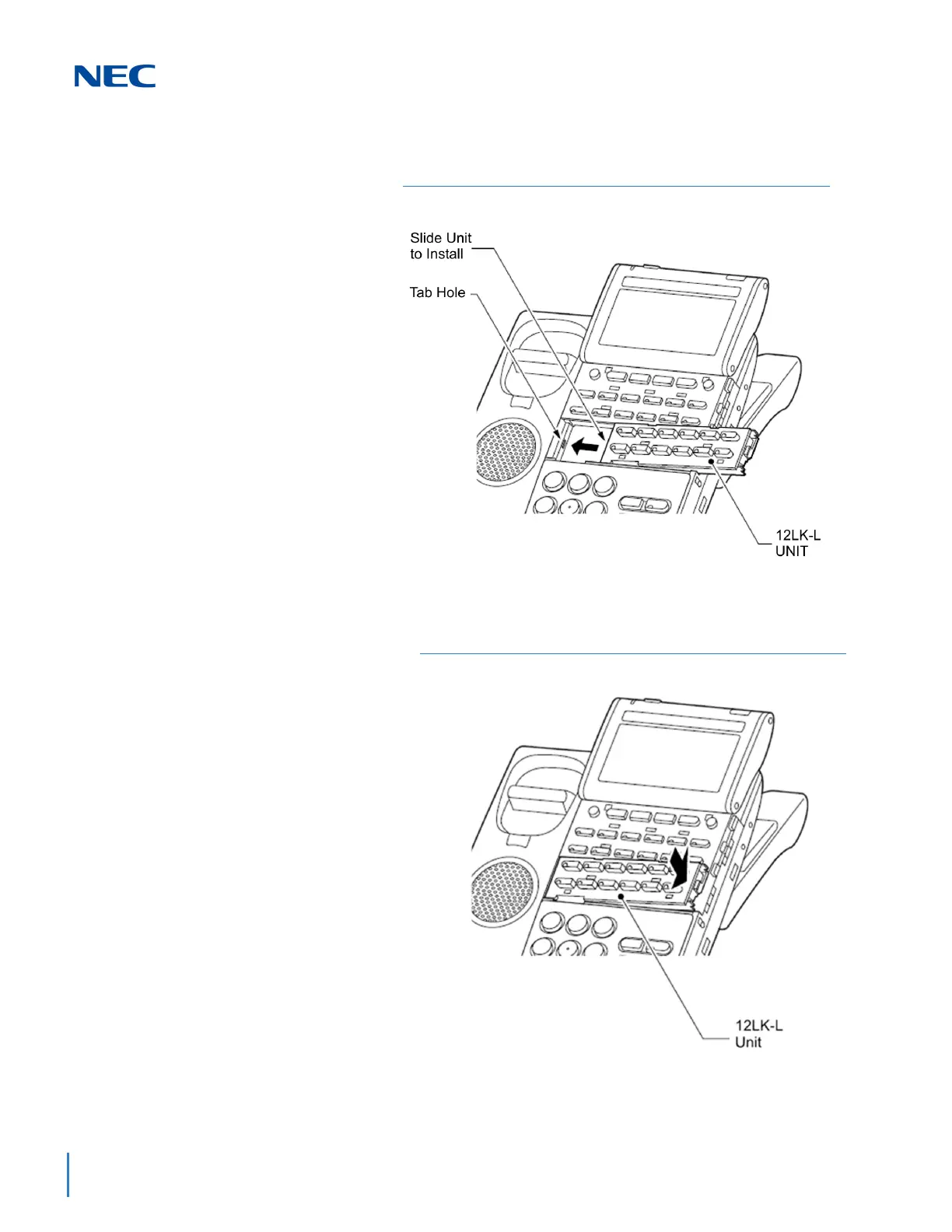

Figure 5-77 Aligning the 12LK-L KIT
Figure 5-78 Installing the 12LK-L KIT
