NEC Univerge SV9100 - Figure 3-112 Installing Two Batteries; Figure 3-113 Installing Battery Cable

Issue 3.0
3-90 Installing the SV9100 Chassis
8. Using the supplied screws, secure the brackets to the CHS2UG BATT
MTG KIT (refer to Figure 3-112 Installing Two Batteries).
9. Connect the provided battery cables to the batteries.

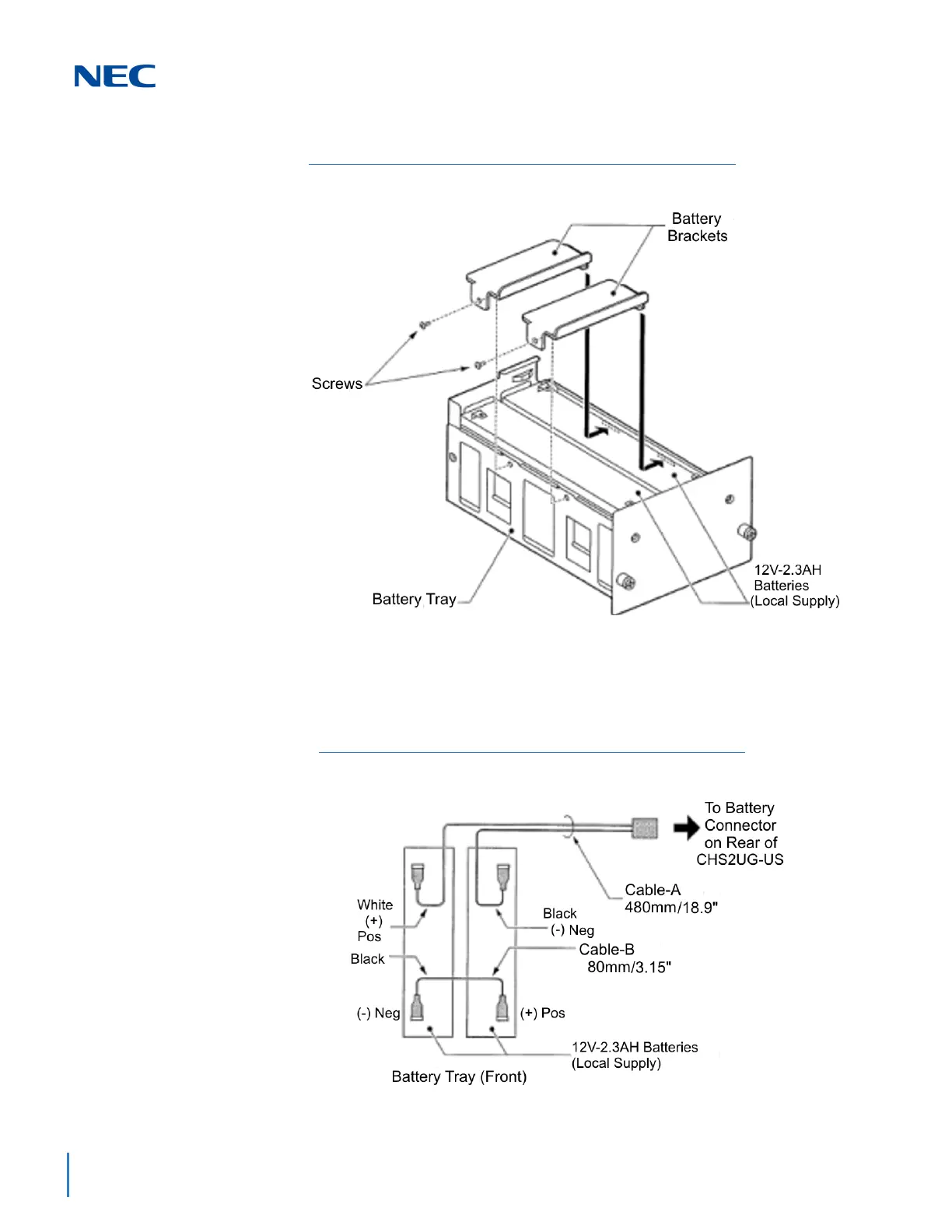

Figure 3-112 Installing Two Batteries
Figure 3-113 Installing Battery Cable
