16.1.1 Local Setting (Web Setting)
Local Setting of the IP Video Doorphone is completed using a PoE Switch
and PC for the following connections.
16.1.2 System Connections
Connect the IP Video Doorphone and IPLE via the PoE Switch. The image
view of the IP Video Doorphone is displayed in the PC using DR-Viewer or
can be displayed on a Polycom VVX1500 terminal.

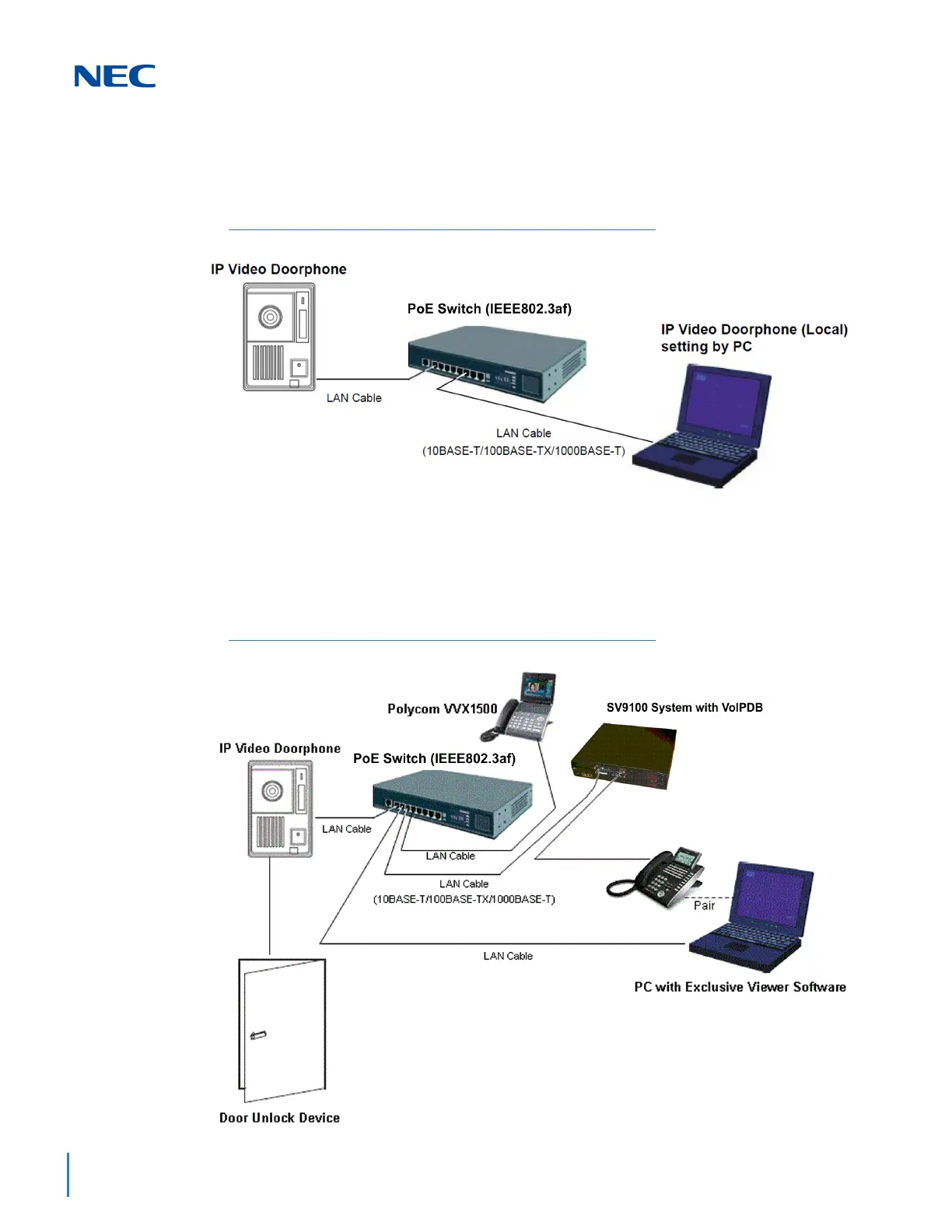

Figure 9-155 IP Video Doorphone Configuration
Figure 9-156 IP Video Doorphone and SV9100 Configuration
