Issue 3.0
SV9100 System Hardware Manual 3-53
14. Lift the shaft and close the 9.5 inch chassis. To secure the chassis to
the wall, tighten the knurled screws located on the upper and lower
brackets.
15. Connect grounding wire to chassis. Refer to Chapter 4 paragraph 3.5
Installing the 9.5” Base (CHS2UG B-US) and Expansion
(CHS2UG E) Chassis on page 3-24 for complete details on grounding
the system.
16. Refer to 3.5.5 Install AC Power Cord on 9.5” Base and Expansion
Chassis on page 3-37 for installation of the power cord or, Chapter 6
paragraph 2.1 Installation and Safety Precautions on page 4-4 for
installation of blades.

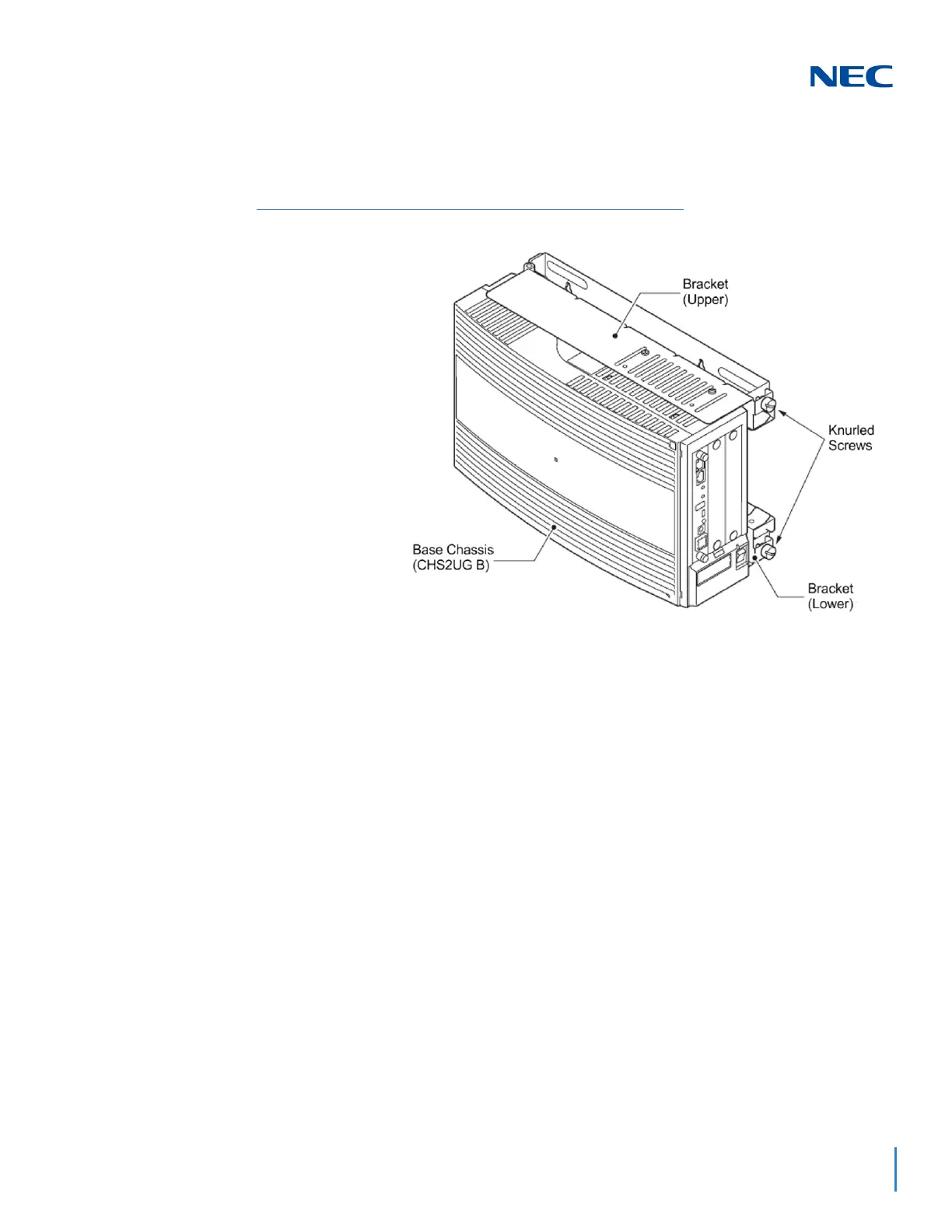

Figure 3-64 Chassis Installed (9.5” Chassis)
