5-90 Installing DT Series Digital and IP Multiline Terminals
6. Attach the bracket with three supplied screws.
7. Carefully push the Serial cable into the Serial Cable Groove
(DT700/DT800 only).
8. Using the guides, slide the DCL-60-1/DCZ-60-2 CONSOLE
onto the installed bracket (refer to Figure 5-98 Press Serial
Cable into Groove).

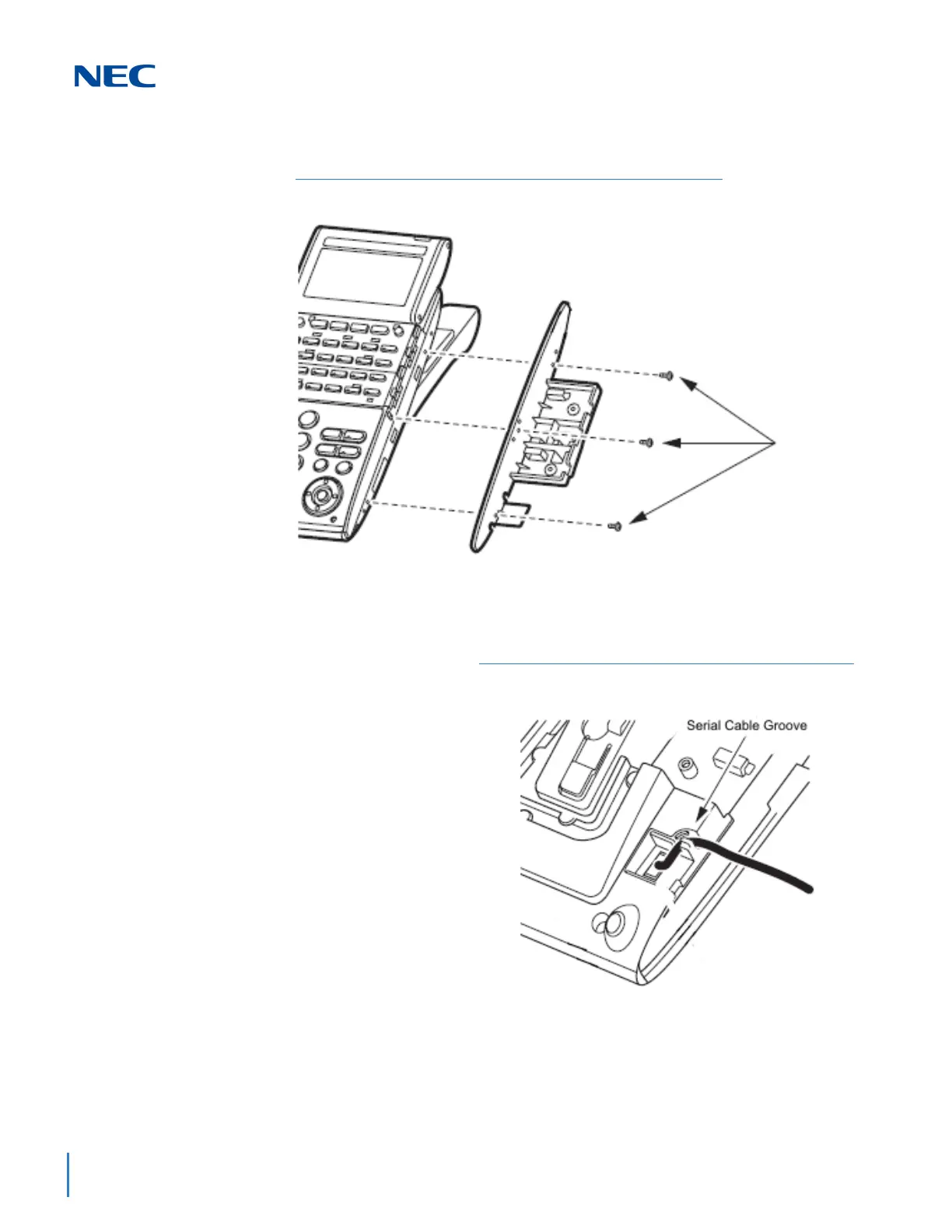

Figure 5-97 Secure Bracket to Multiline Terminal with Screws
Figure 5-98 Press Serial Cable into Groove
