NEC Univerge SV9100 - Figure 5-111 WM-L UNIT Installed; Figure 5-112 WM-L UNIT Release Button

Issue 3.0
SV9100 System Hardware Manual 5-97
5. Push down until the multiline terminal snaps into place (refer
to Figure 5-111 WM-L UNIT Installed).
6. To release the multiline terminal from the WM-L UNIT, press
the release button and push the telephone up (refer to
Figure 5-112 WM-L UNIT Release Button).

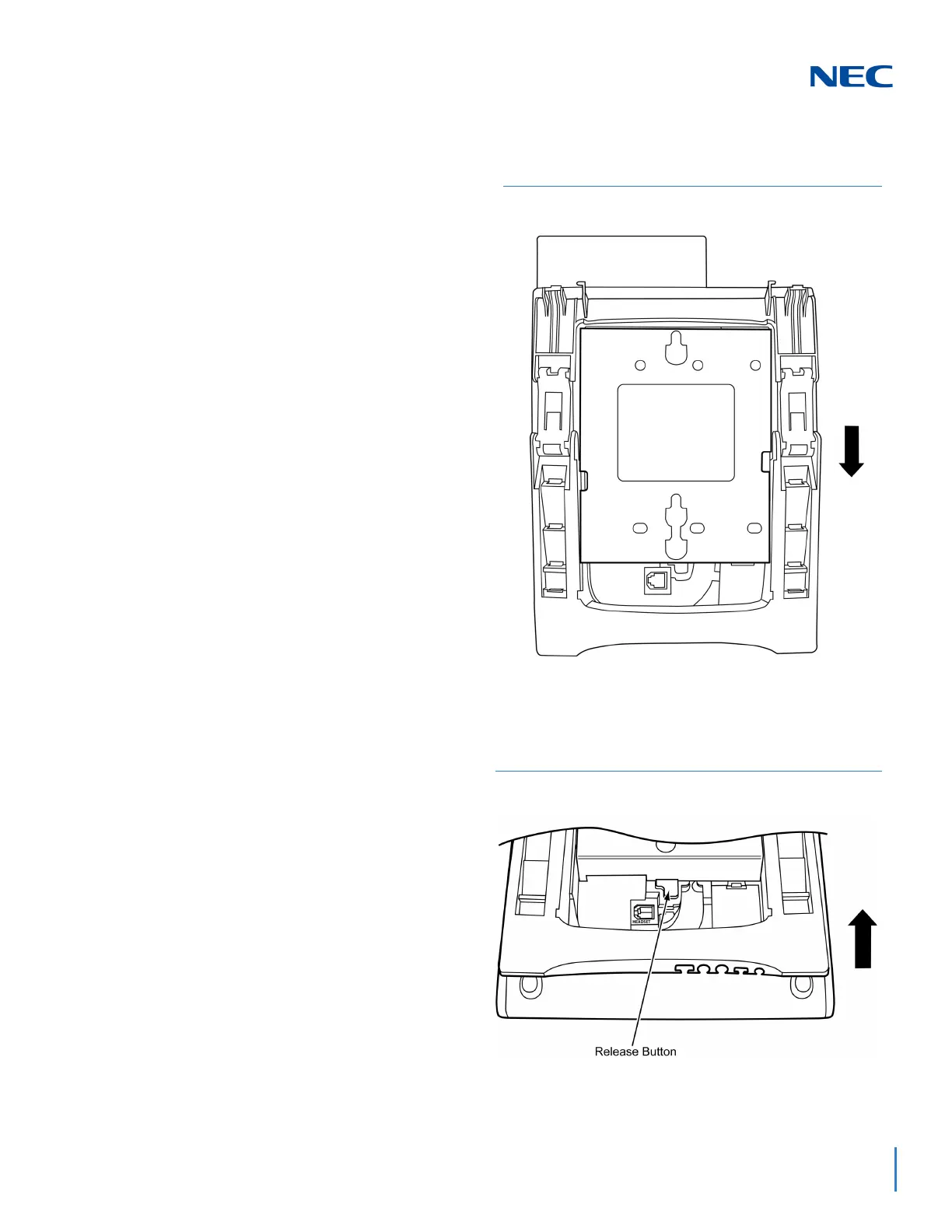

Figure 5-111 WM-L UNIT Installed
Figure 5-112 WM-L UNIT Release Button
