Issue 3.0
9-12 Installing SV9100 Optional Equipment
11. To connect a Door Box to an external relay for an unlock device, for
example, connect one-pair 24 AWG station cable from the Relay 5 (for Door
Box 1) or Relay 6 (for Door Box 2) connectors (CN5) in the PGD(2)-U10
ADP. Connect the opposite end to the unlock device.
Refer to section 6.2 Door Box /External Page Relay Contacts on page 9-16
for additional information when using the GCD-CP10 relay.

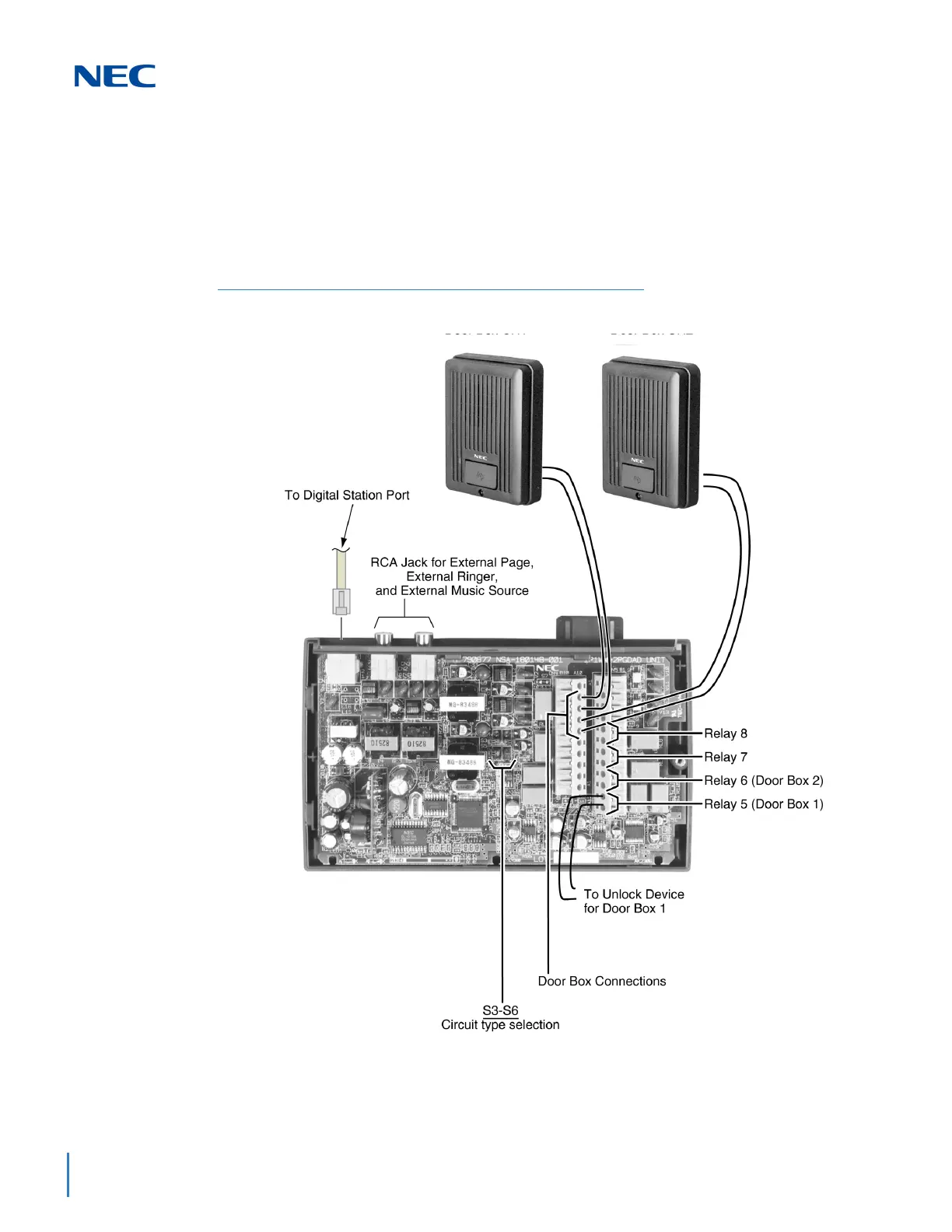

Figure 9-11 Setting the PGD(2)-U10 ADP for a Door Box
