5.2.6 Removal and Replacement of the Numbered Keypad
The Numbered Keypad (in black or white), is commonly delivered in the
Business/Standard Layout configuration (refer to Figure 5-83 Standard
Numbered Keypad) and can be easily removed and replaced.
5.2.6.1 Removing the Numbered Keypad
1. Remove the Numbered Keypad Panel. (Refer to paragraph
Figure 5-84 Remove Plastic Panels.)

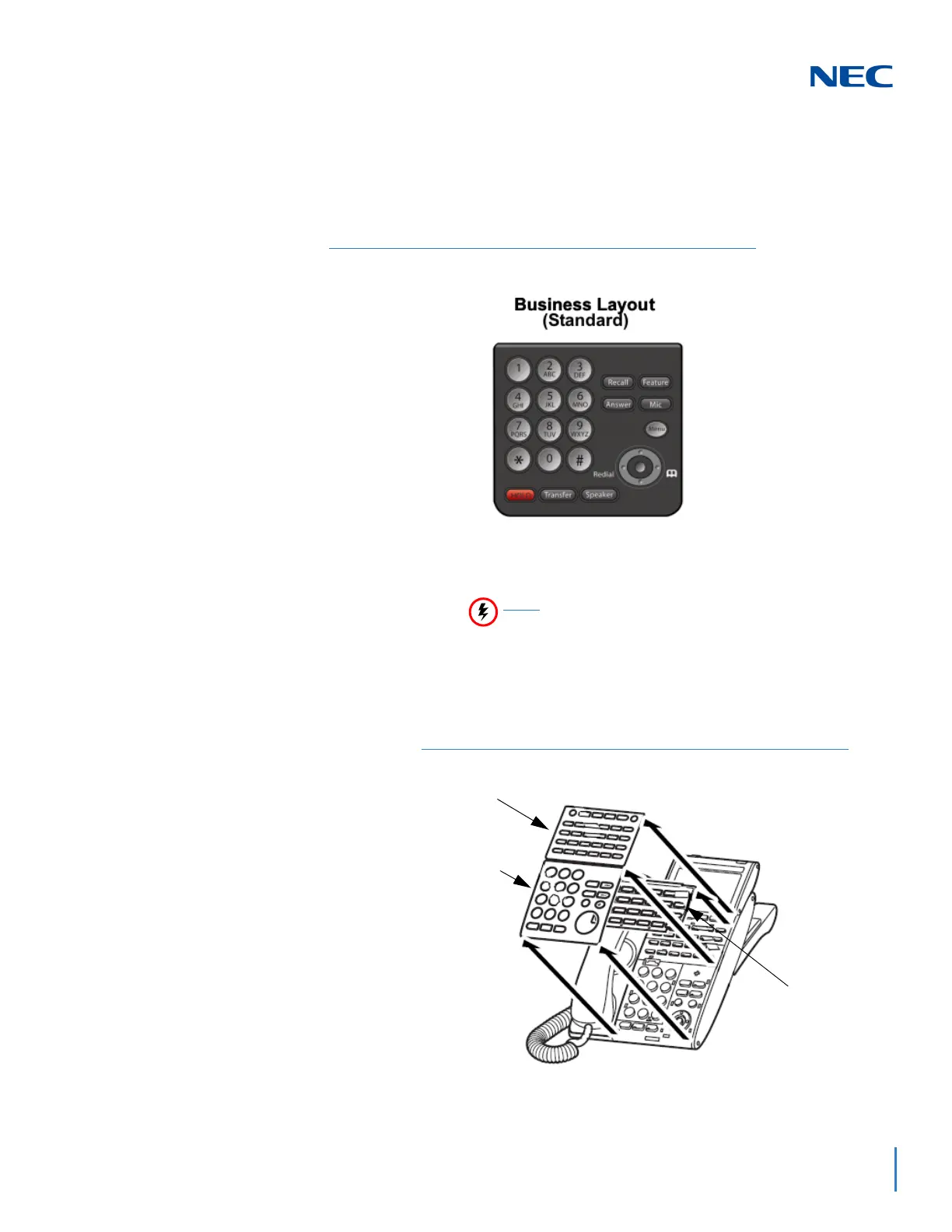

Figure 5-83 Standard Numbered Keypad
WARNING
To prevent possible damage to the Numbered
Keypad or the DTL/ITL multiline terminal
during installation or removal, disconnect the
line cord/LAN cable and the AC/DC adapter
from the DTL/ITL multiline terminal.
Figure 5-84 Remove Plastic Panels
Line Key
Panel
Numbered
Keypad
Panel
Desi Printer
Sheet
