3-106 Installing the SV9100 Chassis
5. Remove the two M3 x 8 screws from the Small Battery Box, then
remove the battery cover (refer to Figure 3-140 Removing Battery
Cover).
6. Place the two batteries into the Small Battery Box (refer to Figure
3-141 Installing Batteries on page 3-107).

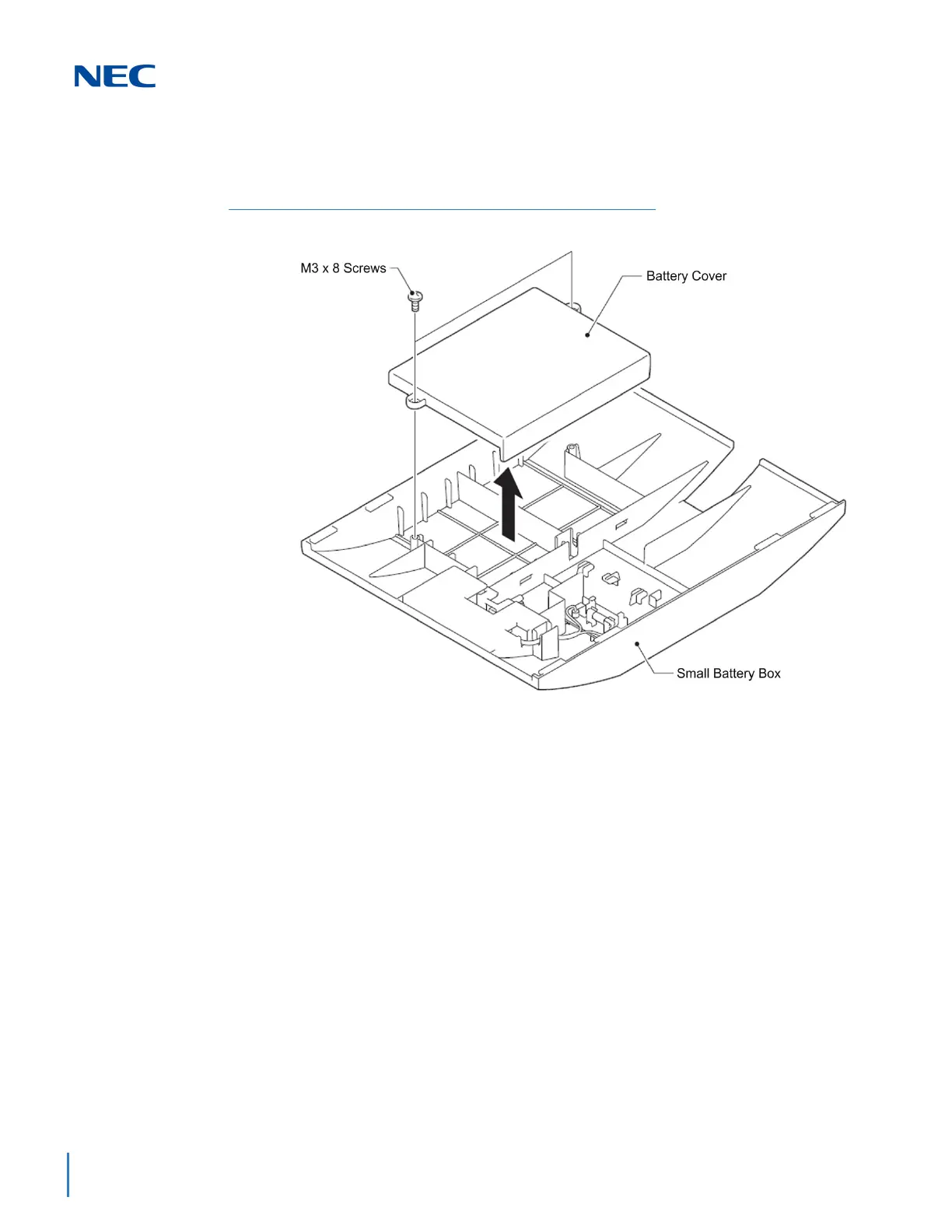

Figure 3-140 Removing Battery Cover
