Issue 3.0
SV9100 System Hardware Manual 3-47
When mounting the Expansion chassis, leave a space of approximately 0.4 in
(10mm) between the two for the EXIFU cable.
1. Use the template shown in Figure 3-54 Wall Mount Spacing Guide
(9.5” Chassis) for required spacing before drilling.
2. Mark and drill four holes marked A, B, C and D.
3. Mount Anchor bolts (locally procured), in holes A and B drilled in step
2.
Because the bracket (upper) will be hooked onto the head of the
anchor bolts, allow the head to protrude approximately 0.14 to 15
in (3.5 to 4.0mm) from the wall (refer to (Figure 3-55 Anchor
Bolt from Wall (9.5” Chassis) on page 3-48).

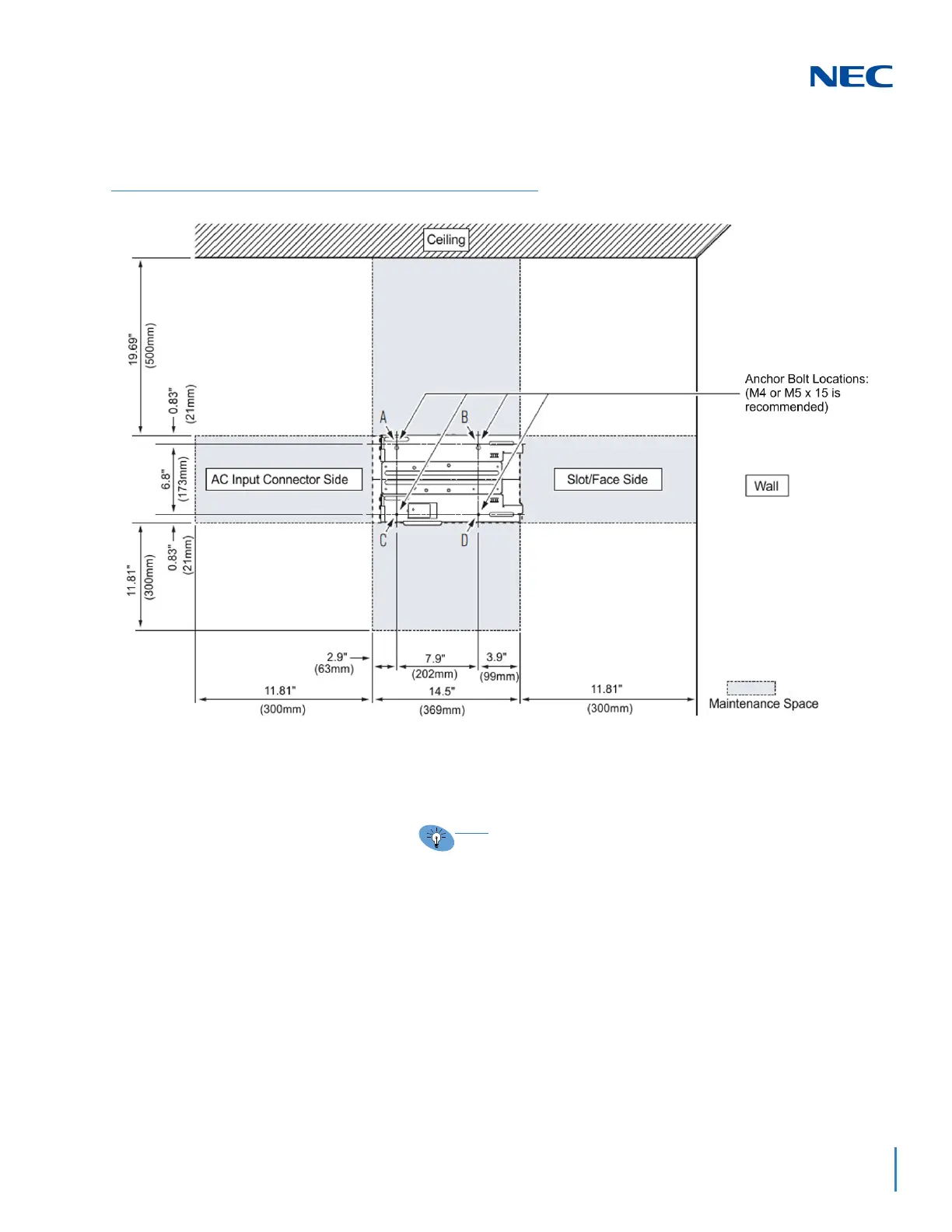

Figure 3-54 Wall Mount Spacing Guide (9.5” Chassis)
Plywood should first be installed on the wall where the
chassis will be positioned. This allows secure anchoring
of the screws, which support the weight of the chassis.
