NEC Univerge SV9100 - Figure 9-15 PGD(2)-U10 ADP Cable Connection

Issue 3.0
SV9100 System Hardware Manual 9-19
7.3 Programming
 10-03-01 : ETU Setup – Terminal Type (Circuit 1)
10-03-06 : ETU Setup – Terminal Type (Circuit 2)
Confirm that the PGD(2)-U10 ADP has defined the circuit as either type 7
for External Ringer or 9 for ACIs. (If the PGD(2)-U10 ADP circuit was
previously defined for another type of circuit, unplug the
PGD(2)-U10 ADP and plug it back in to reset the circuit type.)
 10-05-01 : General Purpose Relay Setup
Define which relay circuits (5~8) on the PGD(2)-U10 ADP are used for
General Purpose Relays.
 11-06-01 : ACI Extension Numbering
Assign extension numbers to ACI software ports. Select a number outside
of the normal extension number range.
ACI Ports 1
~96

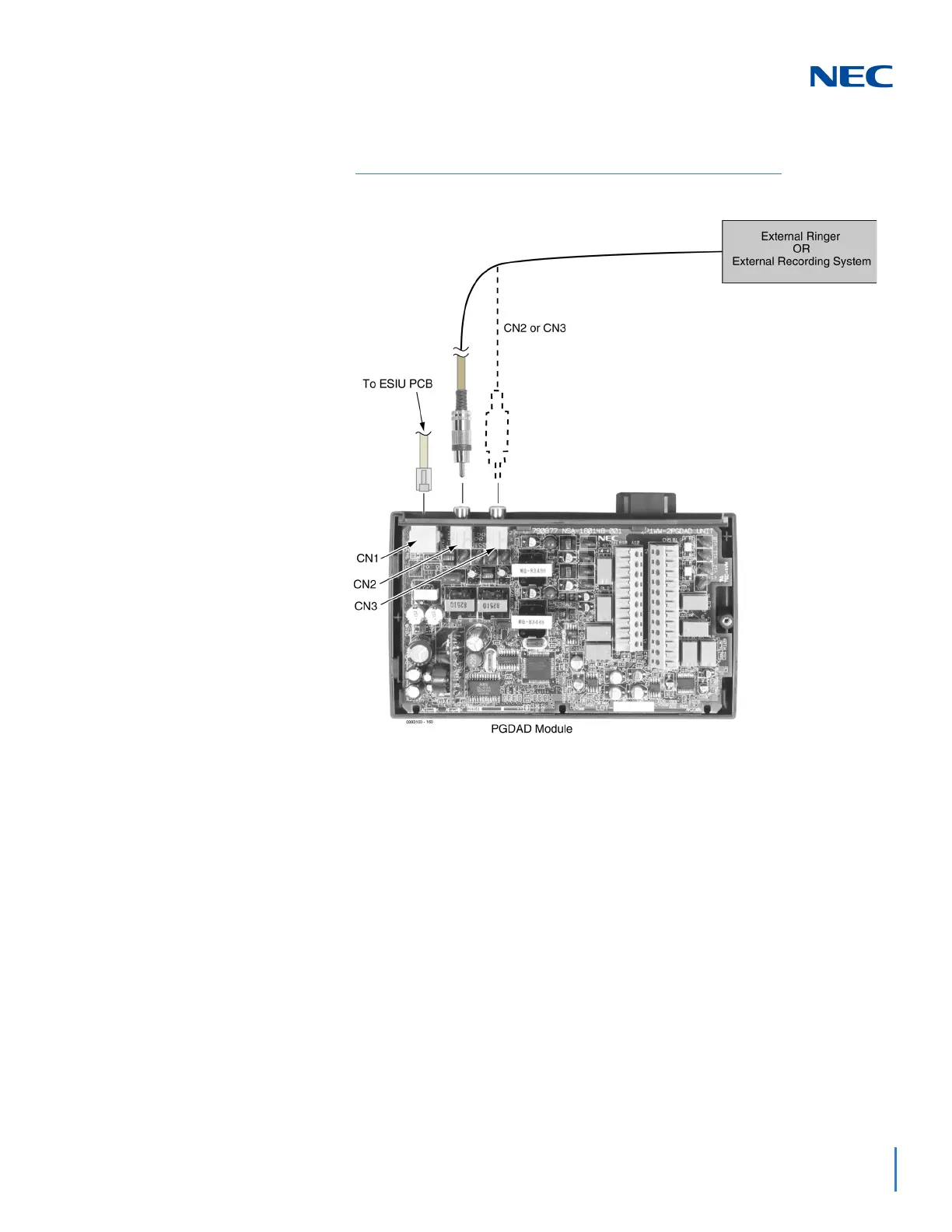

Figure 9-15 PGD(2)-U10 ADP Cable Connection
