NEC Univerge SV9100 - Figure 3-86 Install CHS2 UG JOINT BRACKET KIT

Issue 3.0
3-70 Installing the SV9100 Chassis
6. Secure the chassis to the CHS BASE UNIT using eight screws
supplied with the CHS2UG JOINT BRACKET KIT.
7. Connect the ground wire to all chassis. Refer to 3.3.3 Install
Grounding on 19” Chassis on page 3-19 for complete details on
grounding the system.
8. Refer to 3.3.5 Install AC Power Cords on 19” Chassis on page 3-20 to
continue installation of the chassis or, Chapter 6 paragraph 2.1
Installation and Safety Precautions on page 4-4 for installation of
blades.

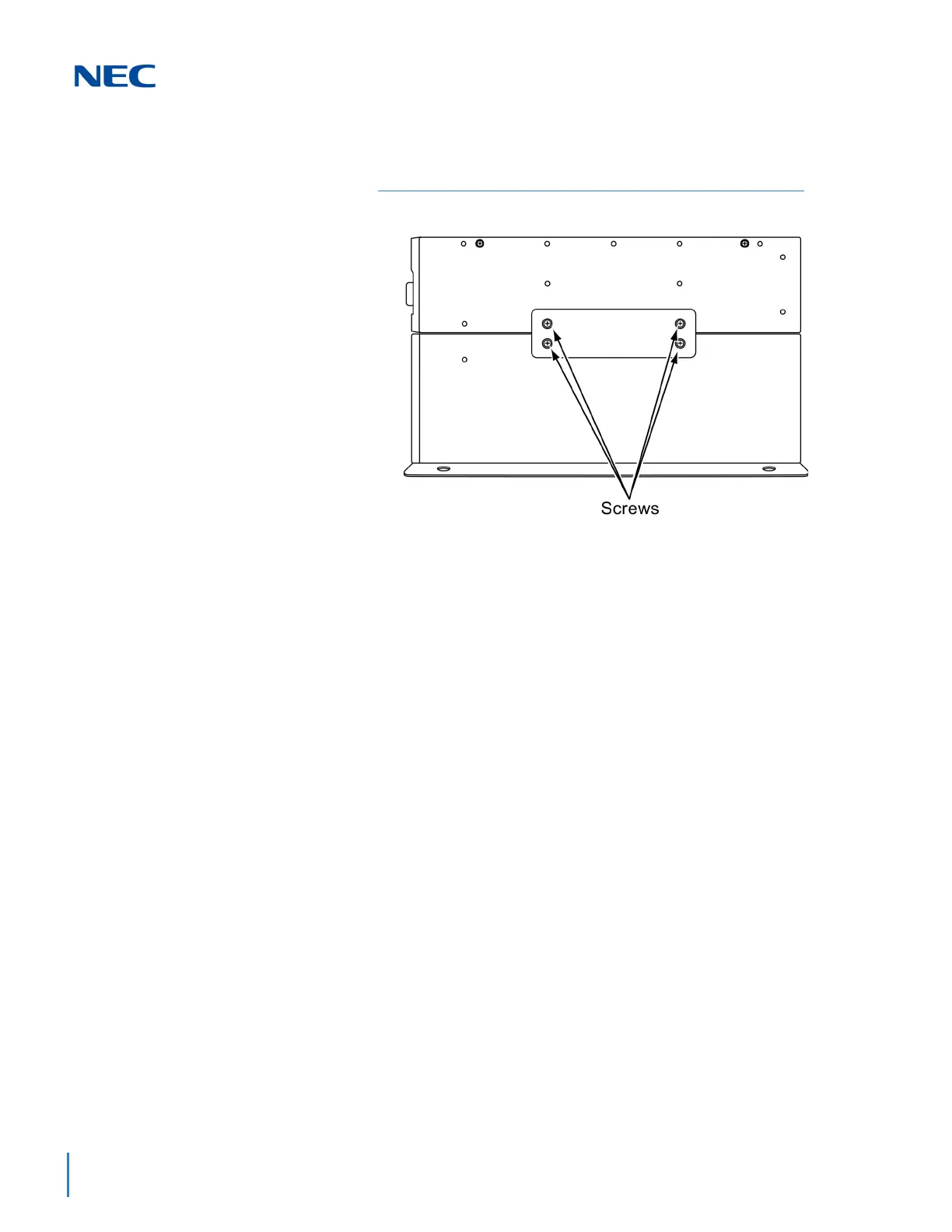

Figure 3-86 Install CHS2UG JOINT BRACKET KIT
