NEC Univerge SV9100 - Figure 3-98 Attaching the Second Stand Unit Bracket; Figure 3-99 Installing the Support Bracket

Issue 3.0
3-80 Installing the SV9100 Chassis
4. Install tab slots J, K, L, M, N and O of the remaining bracket on tabs j, k, l,
m, n and o on the opposite side of the stand unit.
5. Align the support bracket with holes P and Q on the stand unit brackets and
secure using the two M3 x 8 screws provided.

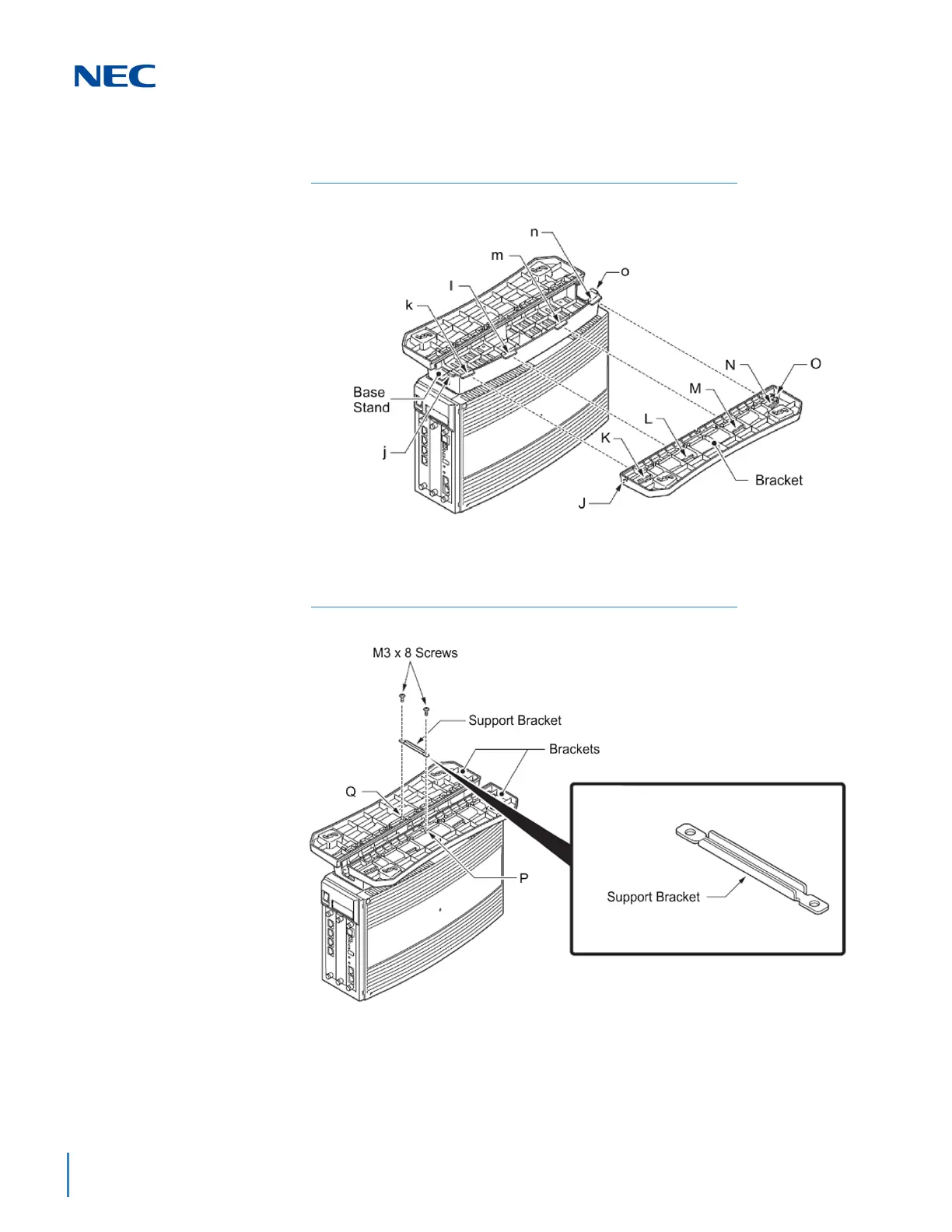

Figure 3-98 Attaching the Second Stand Unit Bracket
Figure 3-99 Installing the Support Bracket
