Issue 3.0
3-82 Installing the SV9100 Chassis
SECTION 7 RACK MOUNTING THE CHASSIS
7.1 Rack Mounting the 19” (CHS2UG-US) Chassis
A single or multiple chassis can be rack mounted. Controlling and Expansion
chassis can be racked mounted by stacking them horizontally.
1. The 19” chassis requires two rack mount brackets per chassis for mounting.
Each 19" chassis requires its own set of rack mount bracket(s). Refer to
Figure 3-101 CHS2UG-US Rack Mount Brackets.
2. Line up the Rack Mount Bracket(s) with the pre-drilled holes on each side of
the 19” chassis.
3. Secure the brackets to the chassis using the supplied screws. Refer to
Figure 3-102 Rack Mount Bracket Installed 19” CHS2UG-US on page 3-83
for the 19” chassis.
WARNING
Stacking additional chassis (without rack mount brackets) on top
of one rack mounted chassis is not recommended.

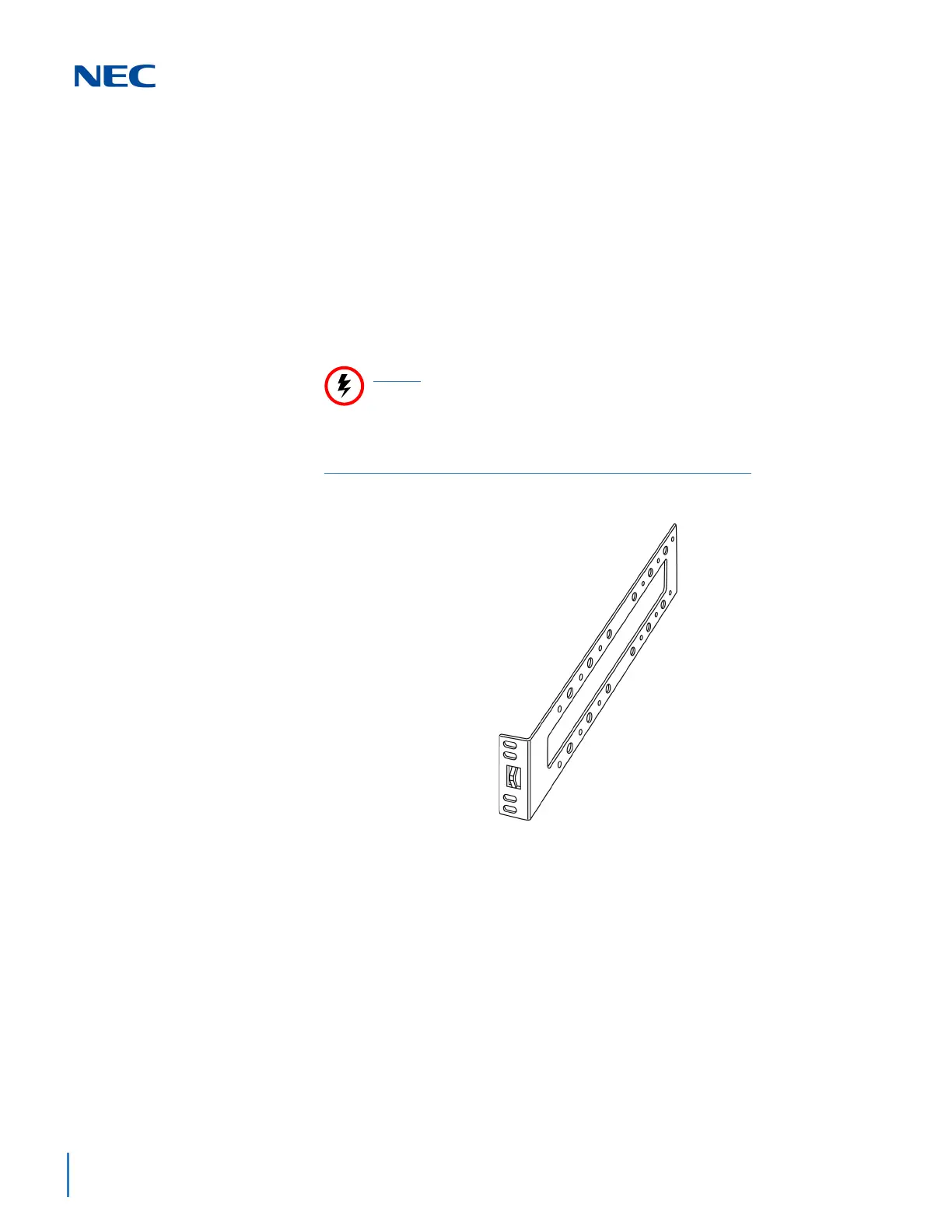

Figure 3-101 CHS2UG-US Rack Mount Brackets
