Issue 3.0
3-48 Installing the SV9100 Chassis
4. Align the upper bracket holes a and b with the heads of anchor bolts
A and B mounted on the wall and slide downward (refer to Figure
3-56 Align Bracket on Wall (9.5” Chassis)).
5. Install anchor bolts in holes C and D (refer to Figure 3-54 Wall Mount
Spacing Guide (9.5” Chassis) on page 3-47). Tighten all four anchor
bolts.

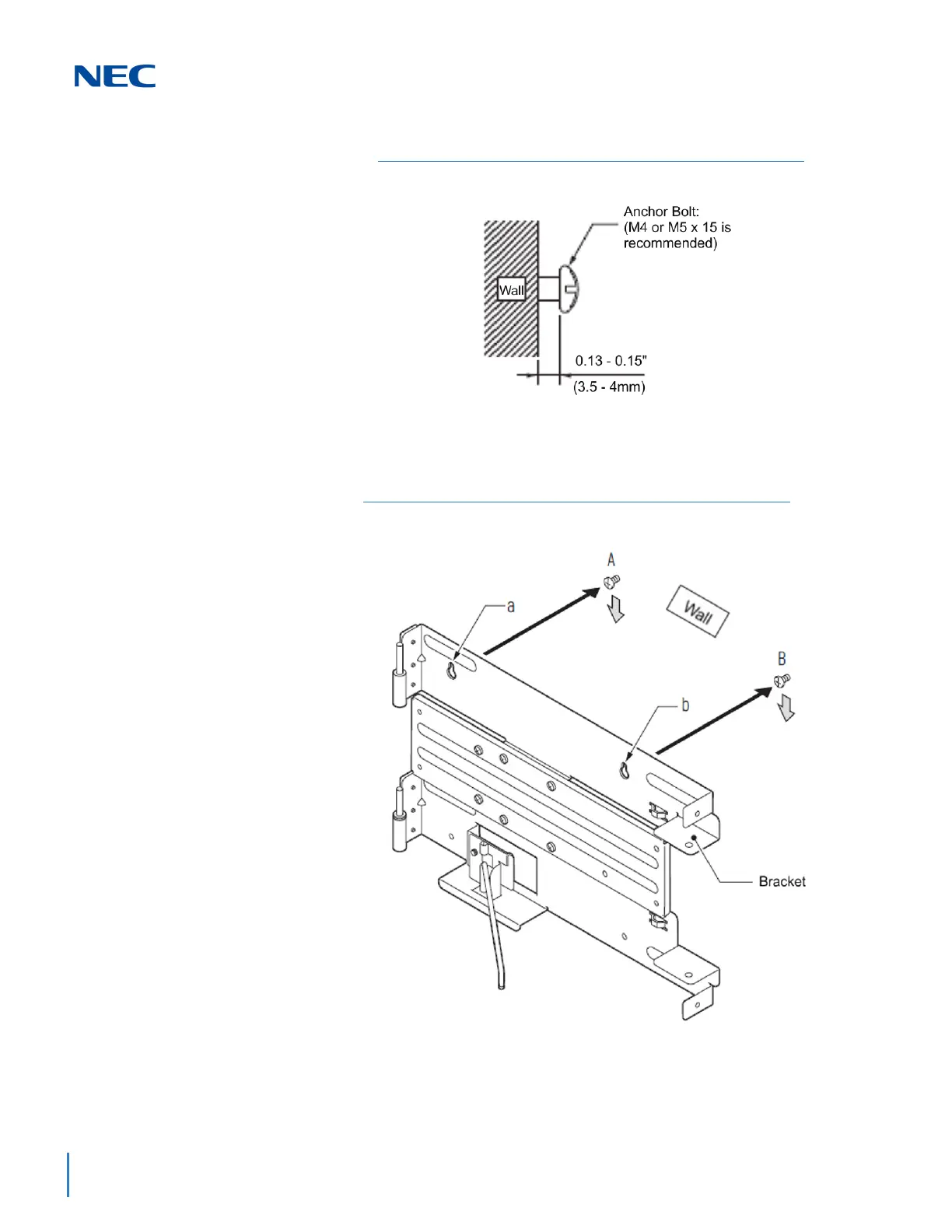

Figure 3-55 Anchor Bolt from Wall (9.5” Chassis)
Figure 3-56 Align Bracket on Wall (9.5” Chassis)
