Issue 3.0
SV9100 System Hardware Manual 3-83
Repeat for additional chassis mounting.
4. Carefully slide the chassis into desired location in the rack. Make sure the
hooks on the mounting bracket are inserted into the back of the chassis,
securing it in place. Note that the cabling is run through the front of the rack
for ease of access.
5. Secure the brackets to the rack using the screws supplied.
Repeat for additional chassis mounting.
6. Connect the ground wire to all chassis. Refer to 3.3.3 Install Grounding on
19” Chassis on page 3-19 for complete details on grounding the system.

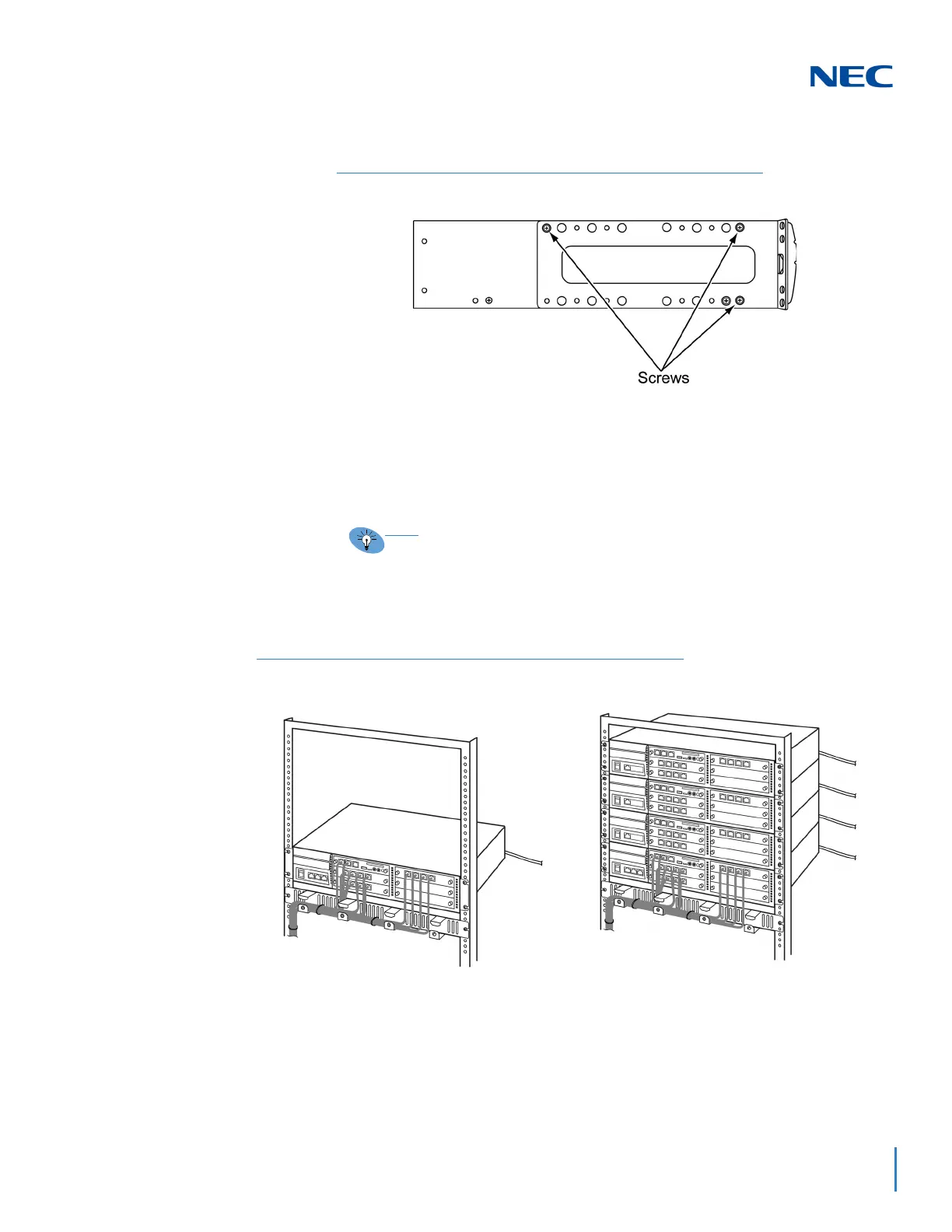

Figure 3-102 Rack Mount Bracket Installed 19” CHS2UG-US
TIP
Each CHS2UG-US chassis will require approximately 3.5” of
height within the rack.
Figure 3-103 Rack Mount 19” CHS2UG-US
Single CHS2UG-US Rack Mount
Single CHS2UG-US Rack Mount
with Three Expansion Chassis
