Issue 3.0

6-22 Installing SV9100 Cordless Telephones

3.2.5.2 Correct Installation

Figure 6-28 Base Coverage Area illustrates repeaters that are

correctly installed.

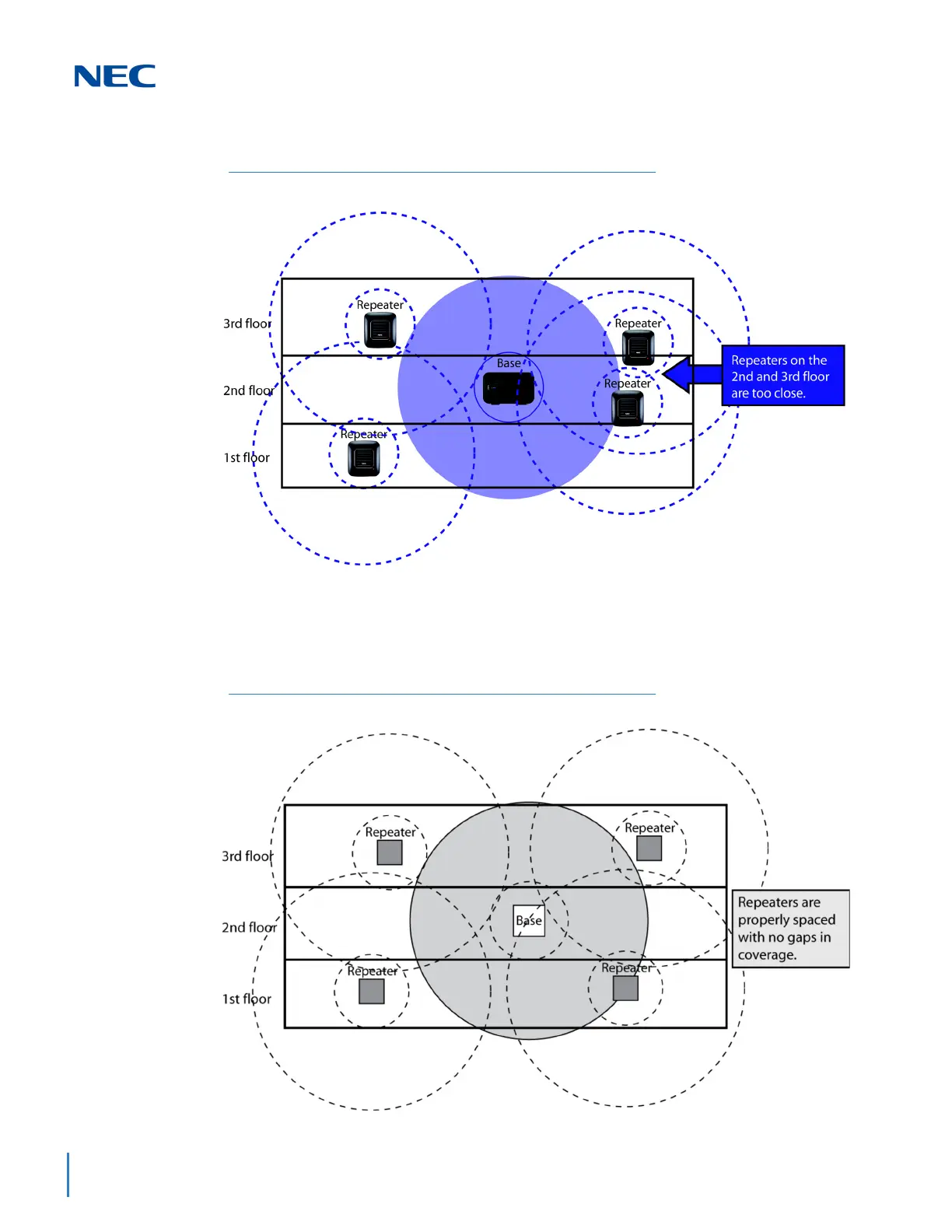

Figure 6-27 Incorrect Installation

Figure 6-28 Base Coverage Area
